2011 Suzuki Equator 2WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Electrical - Extended Storage Switch And BCM Transit Mode
TSB No.: TS 02 08282
Section Title: Body, Cab, and Accessories
Category: Technical
Division: Automotive
SUBJECT: EXTENDED STORAGE SWITCH and BCM TRANSIT MODE
MODEL(S): EQUATOR (A61640)
YEAR: 2011-
CONDITION: Vehicle has been prepared for extended storage periods and transport.
CAUSE: To prevent unnecessary draw on the battery during dealer storage and transport periods, the Extended Storage Switch has been placed in the "Inventory Position" and the BCM has been initialized to the "Transit mode".
CORRECTION: Both Extended Storage Switch and the BCM are to be put into the "In Service" conditions at the time of customer delivery.

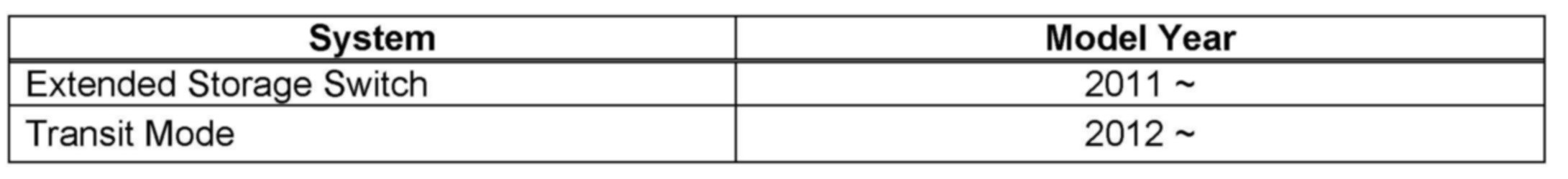

System/Model Year
EXTENDED STORAGE SWITCH/BCM TRANSIT MODE
Section Title: Body, Cab, and Accessories
Category: Technical
Division: Automotive
SUBJECT: EXTENDED STORAGE SWITCH and BCM TRANSIT MODE
MODEL(S): EQUATOR (A61640)
YEAR: 2011-
CONDITION: Vehicle has been prepared for extended storage periods and transport.
CAUSE: To prevent unnecessary draw on the battery during dealer storage and transport periods, the Extended Storage Switch has been placed in the "Inventory Position" and the BCM has been initialized to the "Transit mode".
CORRECTION: Both Extended Storage Switch and the BCM are to be put into the "In Service" conditions at the time of customer delivery.
System/Model Year
EXTENDED STORAGE SWITCH/BCM TRANSIT MODE
