2011 Suzuki Equator 2WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Keyless Entry Receiver: Service and Repair
Remote Keyless Entry Receiver: Removal and Installation
Removal
1) Remove the front pillar upper finisher (RH). Refer to [Body Side Trim: Removal and Installation] Body Side Trim Removal and Installation.
2) Remove the side ventilator grille (RH). Refer to [Ducts and Grilles: Removal and Installation] Removal and Installation.
3) Remove the upper glove box. Refer to [Instrument Panel Assembly: Removal and Installation - Instrument Panel] Instrument Panel Assembly - Instrument Panel.
4) Remove cluster lid D. Refer to [Instrument Panel Assembly: Removal and Installation - Instrument Panel] Instrument Panel Assembly - Instrument Panel.

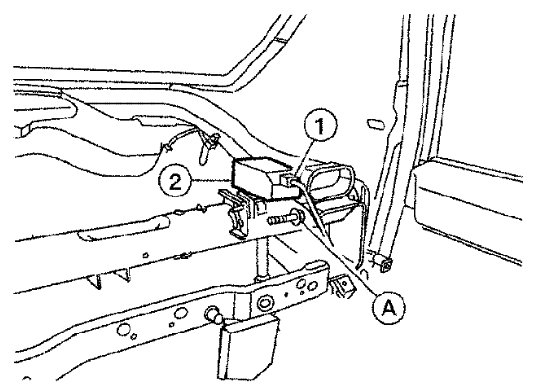

5) Remove the remote keyless entry receiver bolt (A).
6) Disconnect the harness connector (1) and remove the remote keyless entry receiver (2).
Installation
Installation is in the reverse order of removal.
- Perform TPMS ID registration. Refer to [ID Registration Procedure] Programming and Relearning.
