CMP Sensor Inspection
Reference: CMP SENSOR REMOVAL AND INSTALLATION
- Check the following points:
- Check that O-ring (1) is free from damage.
- Check that end face of sensor and signal rotor tooth are free from any metal particles and damage.
- Check CMP sensor as follows.
If faulty condition is found, replace CMP sensor, see CMP Sensor Removal and Installation .

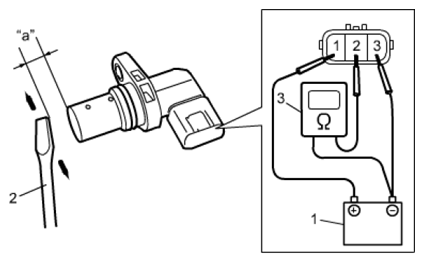

- Connect battery (1) and ohmmeter (3) to CMP sensor as shown in figure.
- Check that CMP sensor resistance varies as specified below by bringing magnetic substance (iron) to CMP sensor.NOTE: Be sure to keep approximately 1 mm (0.03 in) gap "a" between magnetic substance (iron) and end face of CMP sensor.
CMP sensor resistance
Resistance varies between less than 220 Ω (ON) and infinity (OFF)
