2010 Suzuki Equator 2WD V6-4.0LFACTORY OEM SERVICE PROCEDURE
System Specifications
Primary chain tensioner 8.1 Nm (0.83 kgf-m, 72 in lb)
Secondary chain tensioner 8.5 Nm (0.87 kgf-m, 75 in lb)
Timing cover
Bolt position
Bolt diameter
1 - 5 10 mm (0.39 in)
6 - 25 6 mm (0.24 in)
Bolt position
Tightening specification
1 - 5 55.0 Nm (5.6 kg-m, 41 ft-lb)
6 - 25 12.7 Nm (1.3 kg-m, 9 ft-lb)

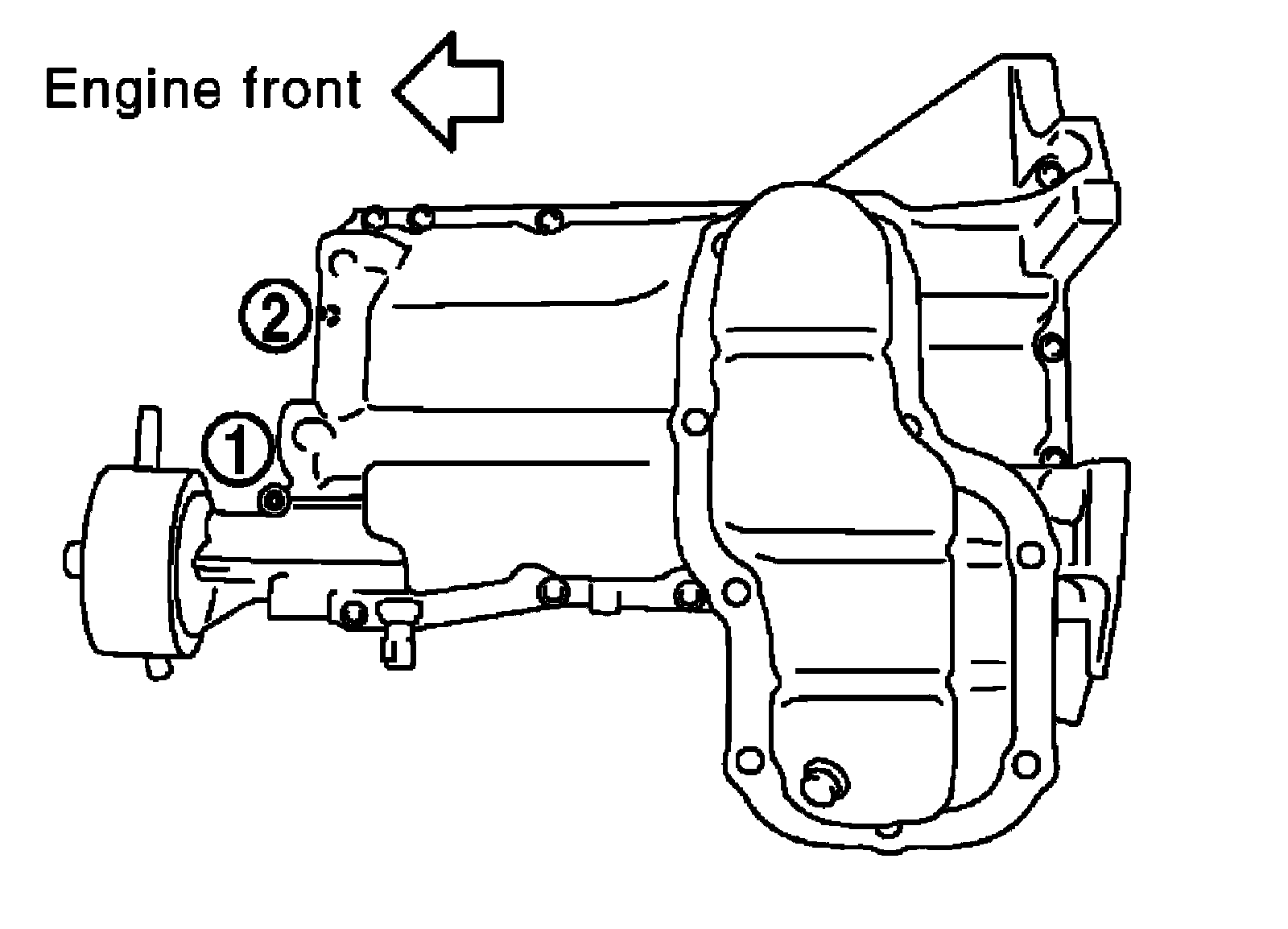

Front oil pan bolt torque 22.0 Nm (2.2 kg-m, 16 ft-lb)
Crankshaft pulley
Step 1 44.1 Nm (4.5 kg-m, 33 ft-lb)
Step 2 84 degrees - 90 degrees clockwise
Secondary chain tensioner 8.5 Nm (0.87 kgf-m, 75 in lb)
Timing cover
Bolt position
Bolt diameter
1 - 5 10 mm (0.39 in)
6 - 25 6 mm (0.24 in)
Bolt position
Tightening specification
1 - 5 55.0 Nm (5.6 kg-m, 41 ft-lb)
6 - 25 12.7 Nm (1.3 kg-m, 9 ft-lb)
Front oil pan bolt torque 22.0 Nm (2.2 kg-m, 16 ft-lb)
Crankshaft pulley
Step 1 44.1 Nm (4.5 kg-m, 33 ft-lb)
Step 2 84 degrees - 90 degrees clockwise
