2010 Suzuki Equator 2WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Generic Scan Tool (GST) Function
Generic Scan Tool (GST) Function
Description
Generic Scan Tool (OBDII scan tool) complying with SAE J1978/ISO 15031-4 has several functions explained below.
ISO15765-4 is used as the protocol.
The name "GST" or "Generic Scan Tool" is used.

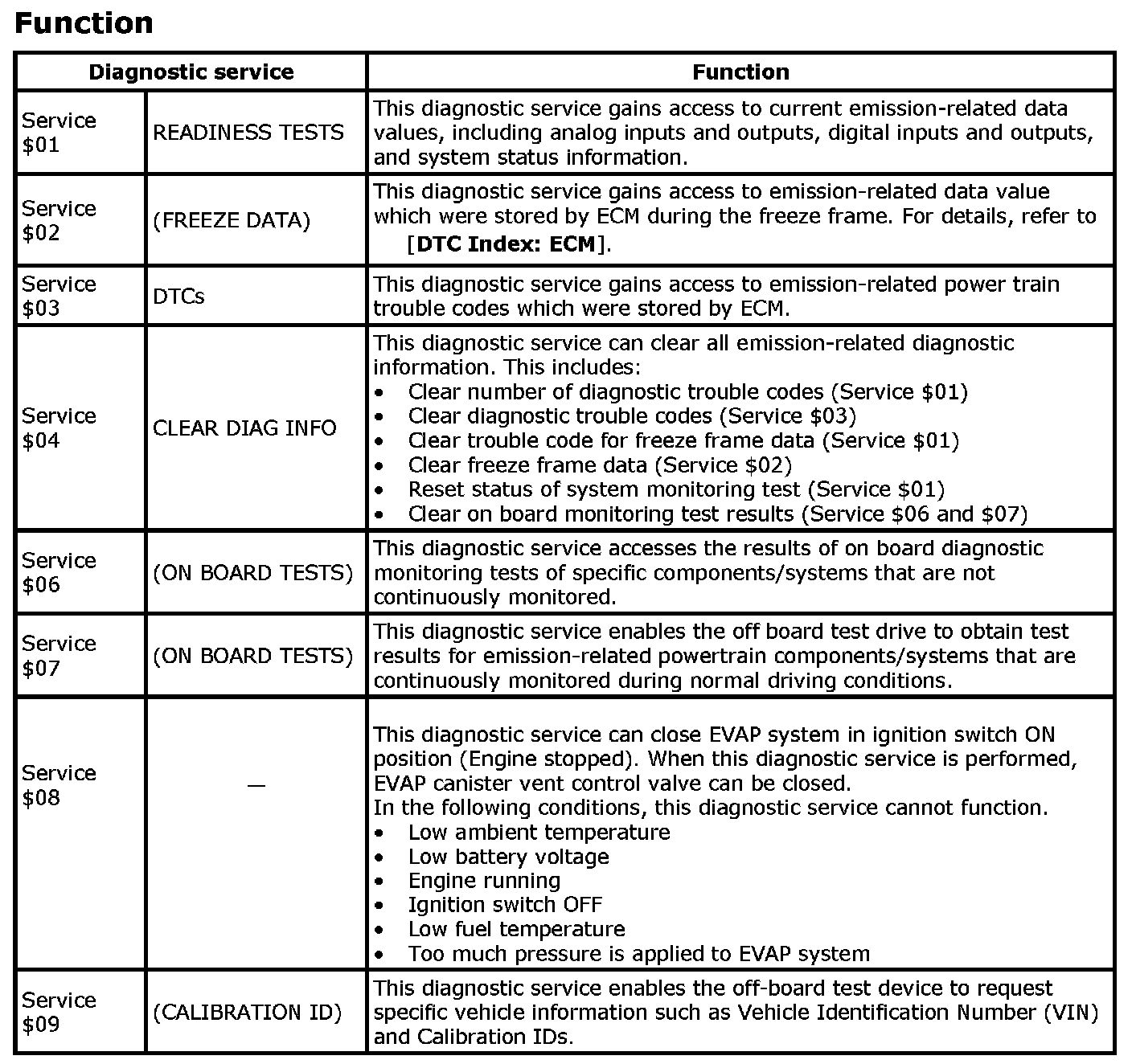

Function
Inspection Procedure
1. Turn ignition switch OFF.
2. Connect GST to data link connector, which is located under LH dash panel near the fuse box cover.
3. Turn ignition switch ON.
4. Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this section, sample screens are shown.)
5. Perform each diagnostic service according to each service procedure.
For further information, see the GST Operation Manual of the tool maker.
Description
Generic Scan Tool (OBDII scan tool) complying with SAE J1978/ISO 15031-4 has several functions explained below.
ISO15765-4 is used as the protocol.
The name "GST" or "Generic Scan Tool" is used.
Function
Inspection Procedure
1. Turn ignition switch OFF.
2. Connect GST to data link connector, which is located under LH dash panel near the fuse box cover.
3. Turn ignition switch ON.
4. Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this section, sample screens are shown.)
5. Perform each diagnostic service according to each service procedure.
For further information, see the GST Operation Manual of the tool maker.
