2008 Suzuki XL7 Base, AWDFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the instrument panel left lower closeout panel. Refer to INSTRUMENT PANEL INSULATOR PANEL REPLACEMENT - LEFT SIDE .
- Remove the driver knee bolster. Refer to KNEE BOLSTER REPLACEMENT .

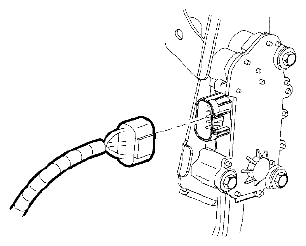

- Remove the connector position assurance (CPA) from the accelerator pedal position (APP) sensor connector.
- Disconnect the APP sensor harness connector.NOTE: Due to clearance issues, the upper attachment bolt cannot be removed from the accelerator pedal assembly. Loose then bolt completely and leave the bolt in the component until the assembly is removed from the vehicle.
- Remove the APP assembly attachment bolts.
- Remove the APP assembly from the vehicle.
