Main Relay Inspection
- Disconnect negative cable at battery.

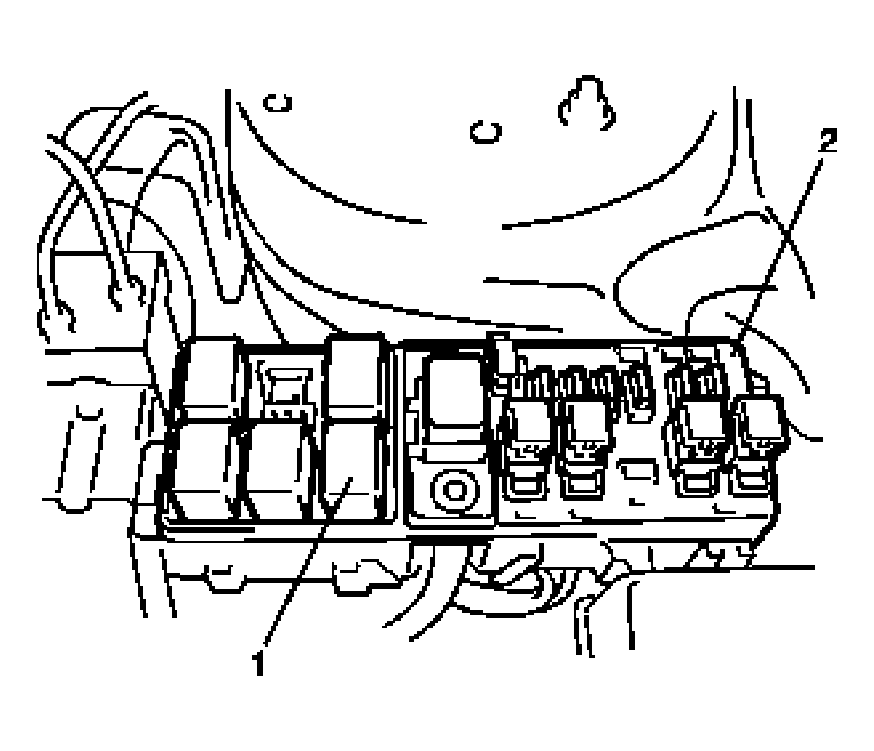

- Remove main relay (1) from relay box (2).

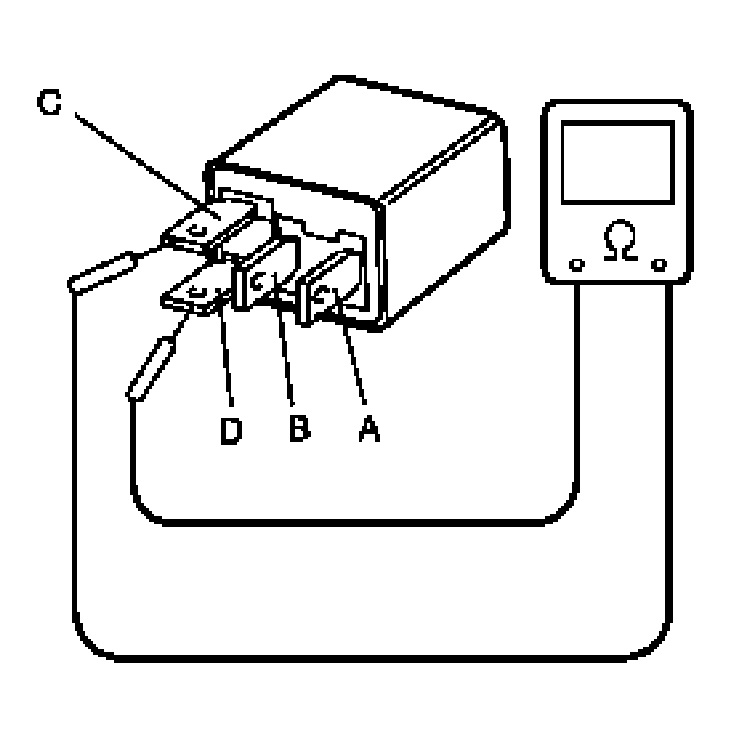

- Check resistance between each two terminals as follows. If check results are as specified, proceed to next operation check. If not, replace.
Main relay resistanceÂ
Between terminals "A" and "B": (Infinity)Â
Between terminals "C" and "C": 160 - 240 ohmÂ

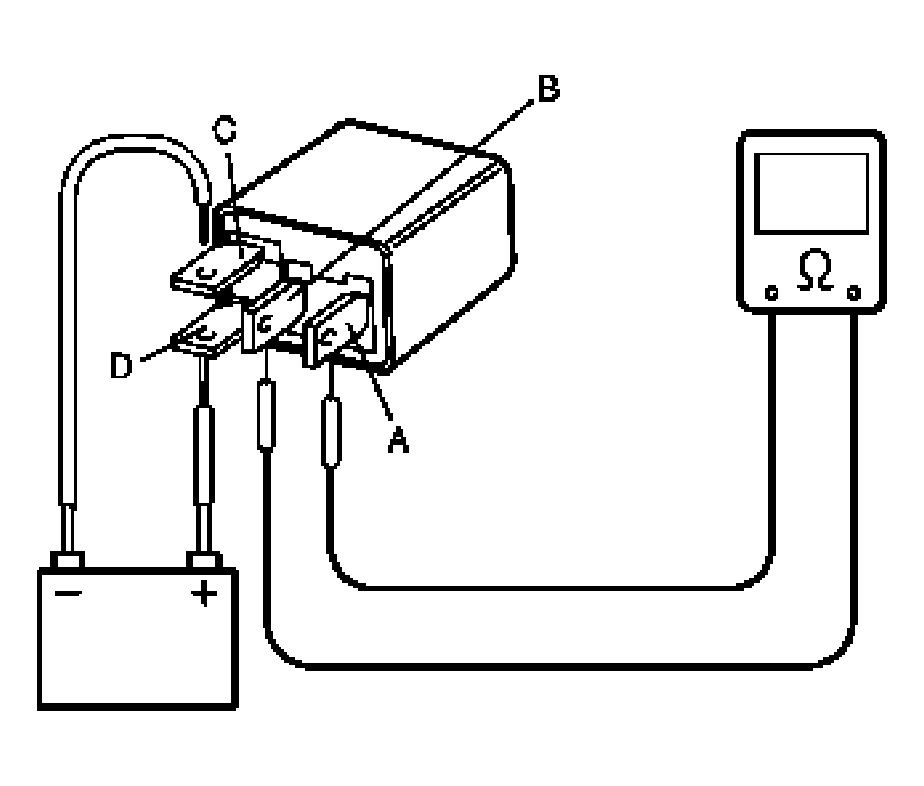

- Check that there is continuity between terminals "A" and "B" when battery is connected to terminals "C" and "D". If found defective, replace.
