2006 Suzuki Verona BaseFACTORY OEM SERVICE PROCEDURE
Knock Sensor Removal
- Disconnect the negative battery cable.

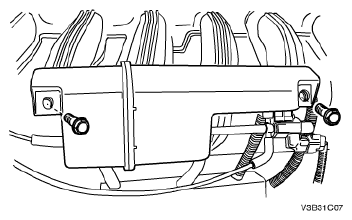

- Remove the VIS vacuum tank. Refer to VIS Vacuum Tank Removal .

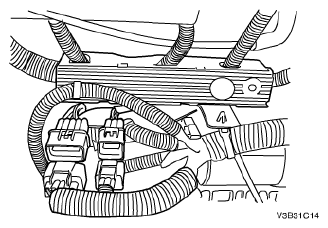

- Remove the wiring harness from the wiring support bracket.
- Disconnect the knock sensor wiring harness connector.

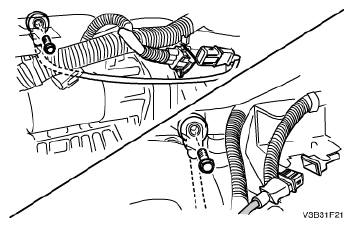

- Remove the knock sensor.
