Knock Sensor Installation
- Installation should follow the removal procedure in the reverse order.

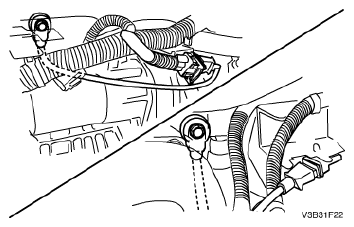

- Install the knock sensor.
Tighten:
Tighten the knock sensor retaining bolt to 18 - 20 N.m (13 - 15 lb-ft).

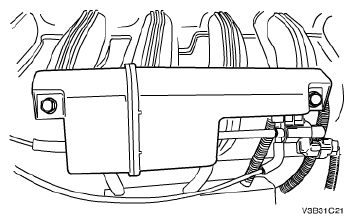

- Install the VIS vacuum tank.
Tighten:
Tighten the VIS vacuum tank retaining bolts to 7 - 9 N.m (62 - 80 lb-in.).
