2006 Suzuki Verona BaseFACTORY OEM SERVICE PROCEDURE

Engine Control Module (ECM) Installation

NOTE: If ECM is replaced with new one (VIN data is still not registered) or with used one (VIN data of other vehicle has been registered previously), make sure that re-register VIN in ECM by performing VIN Registration  so that VIN can be read by a scan tool.
  1. Installation should follow the removal procedure in the reverse order.
  2. Install the ECM.

    Tighten:

    Tighten the ECM retaining nuts to 10 - 14 N.m (89 - 124 lb-in.).

    Fig 1: Identifying ECM
    G04718815Courtesy of SUZUKI OF AMERICA CORP.
  3. Tighten the ECM bracket nuts.

    Tighten:

    Tighten the ECM bracket nuts to 10 - 14 N.m (89 - 124 lb-in.).

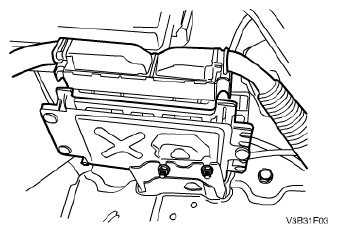

    Fig 2: Identifying ECM Bracket And Nuts
    G04718813Courtesy of SUZUKI OF AMERICA CORP.
