2006 Suzuki Verona BaseFACTORY OEM SERVICE PROCEDURE

Manifold Absolute Pressure Check: Notes

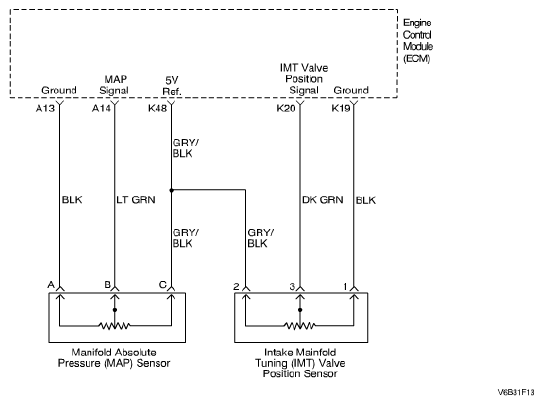

Fig 1: Manifold Absolute Pressure Check - Wiring Diagram
G04718651Courtesy of SUZUKI OF AMERICA CORP.
