2006 Suzuki Verona BaseFACTORY OEM SERVICE PROCEDURE
Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

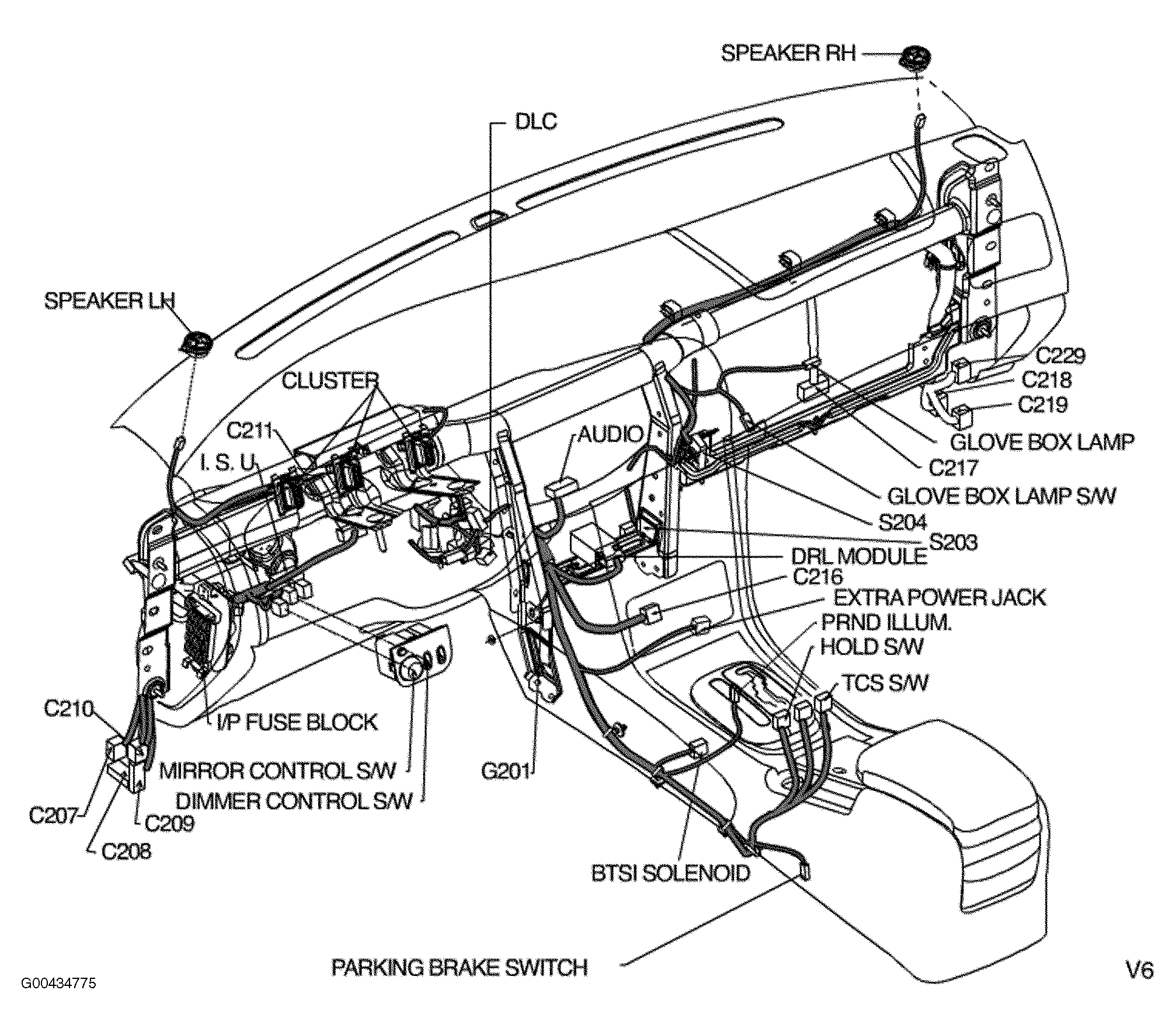

| DRL Module | Behind lower center of dash. See Figure. |

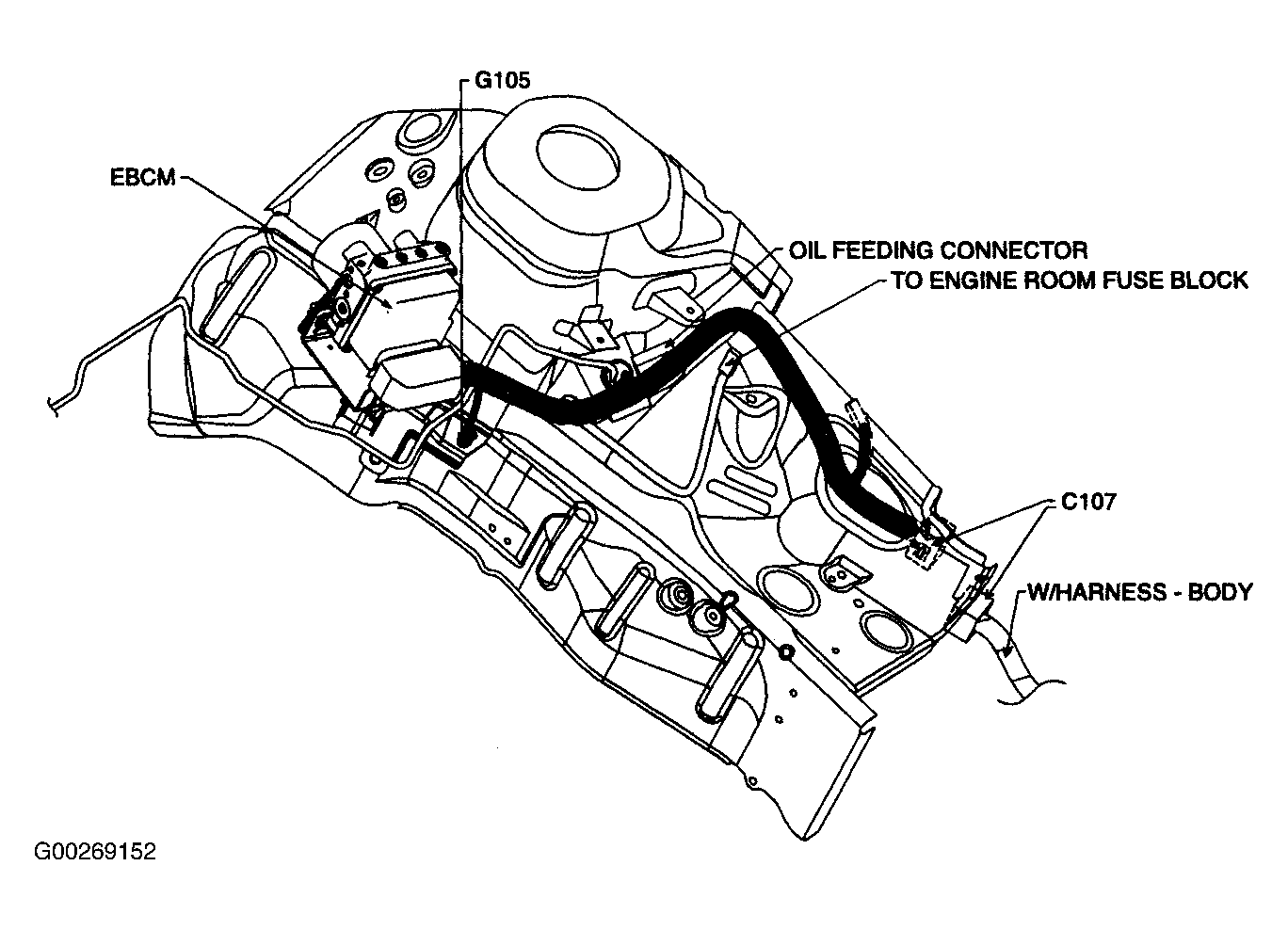

| EBCM (ABS Module) | Left rear corner of engine compartment. See Figure. |

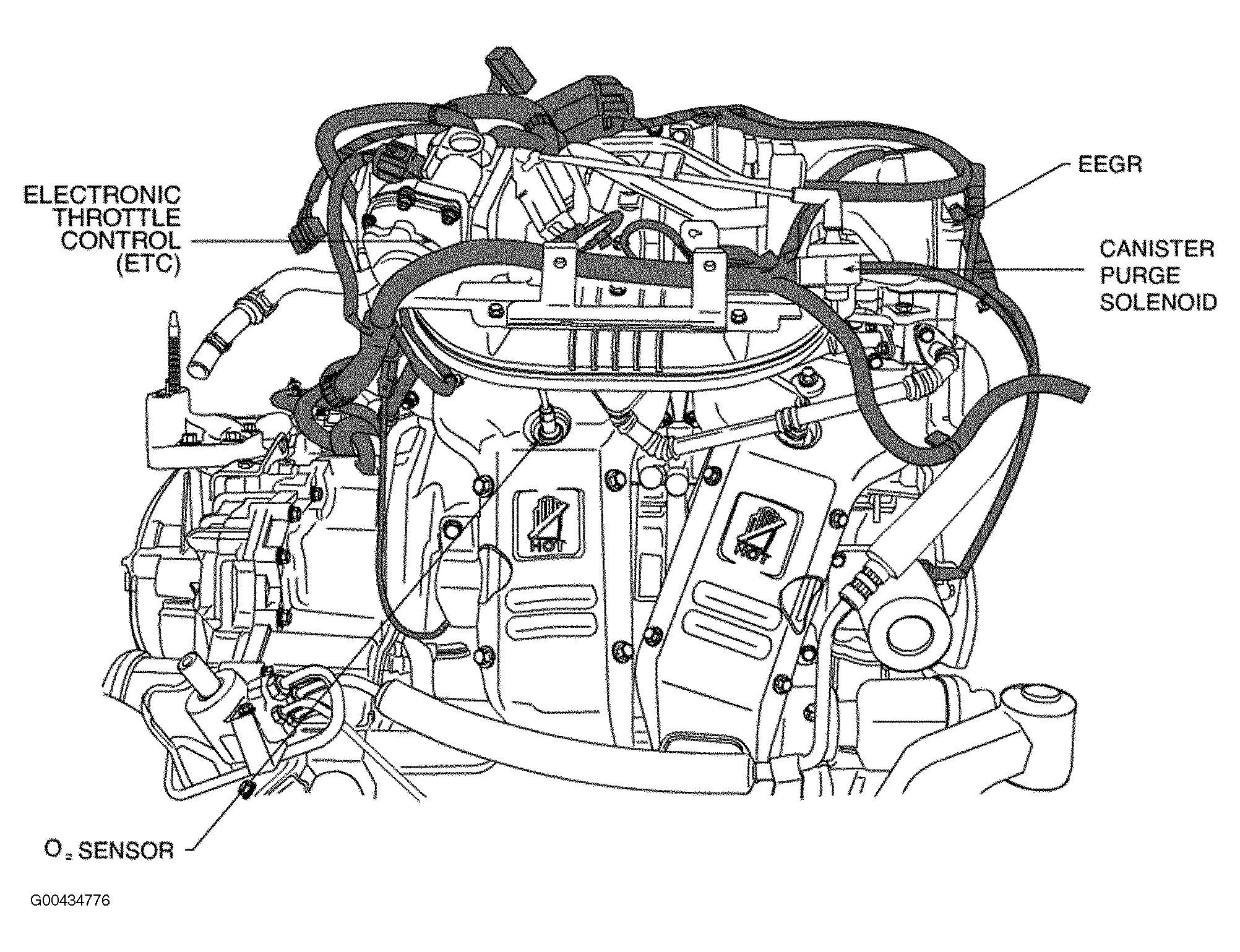

| Electronic Throttle Control (ETC) | Rear of engine. See Figure. |

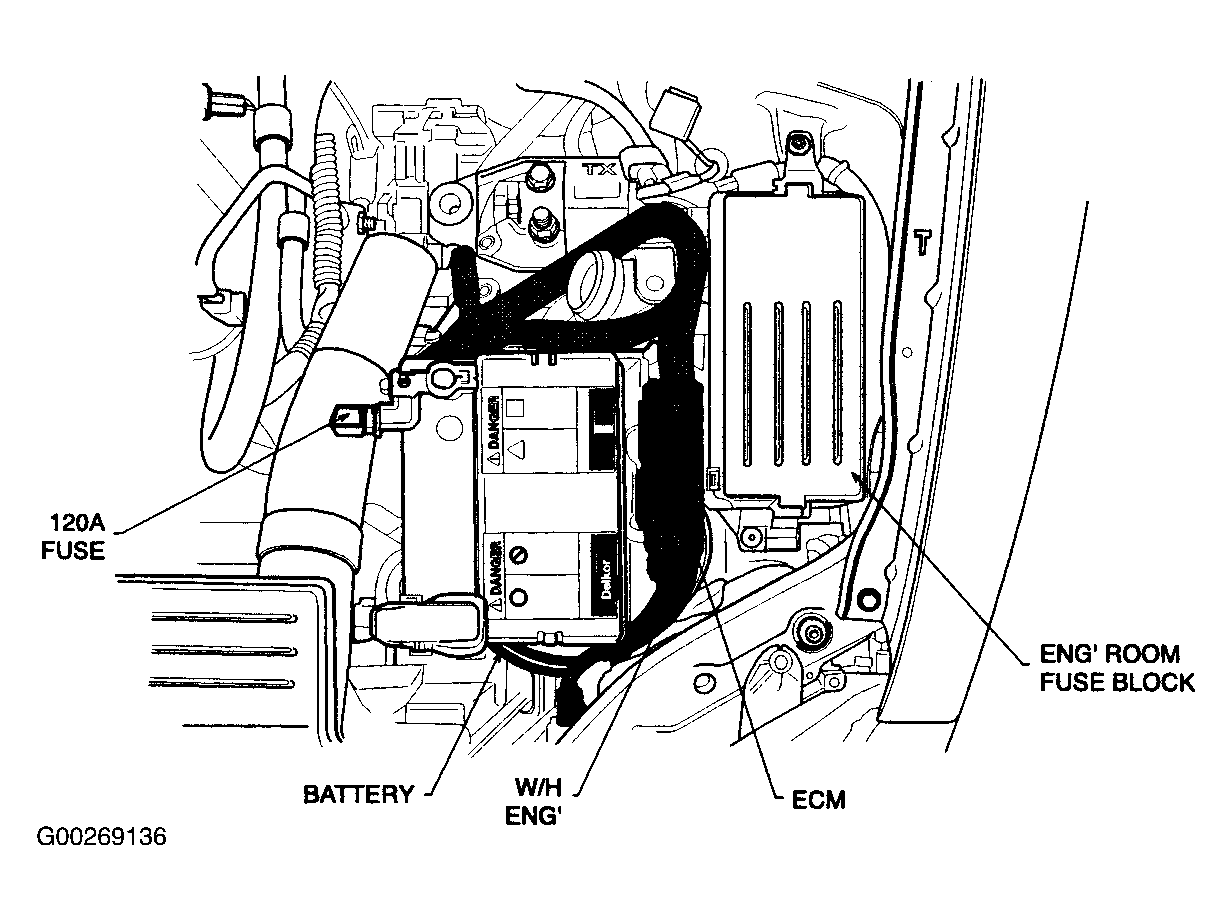

| Engine Control Module (ECM) | Left front of engine compartment. See Figure. |
| ISU (Intelligent Switching Unit) | Lower left side of dash. See Figure. |

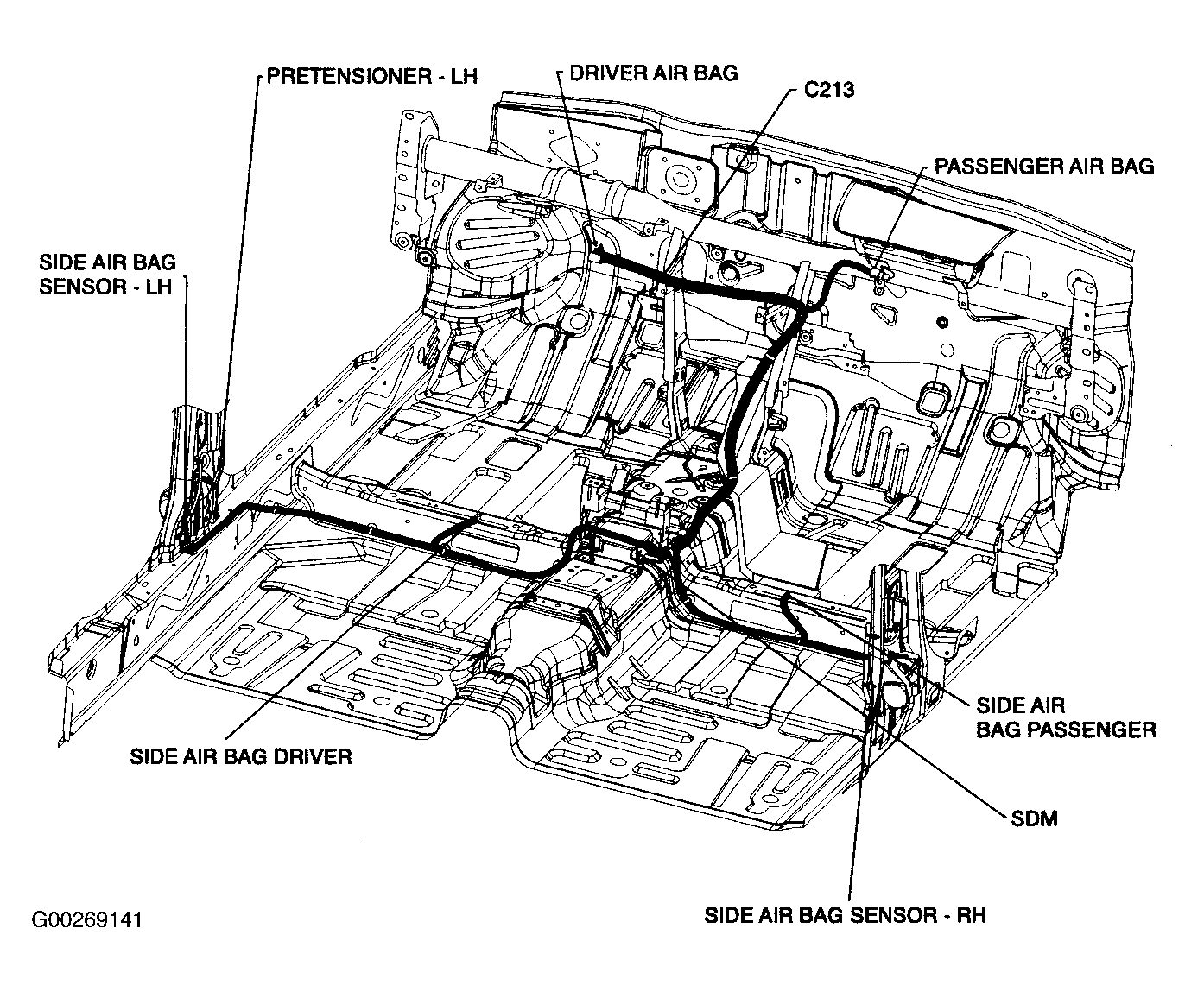

| SDM (Sensing & Diagnostic Module) | Under center console. See Figure. |

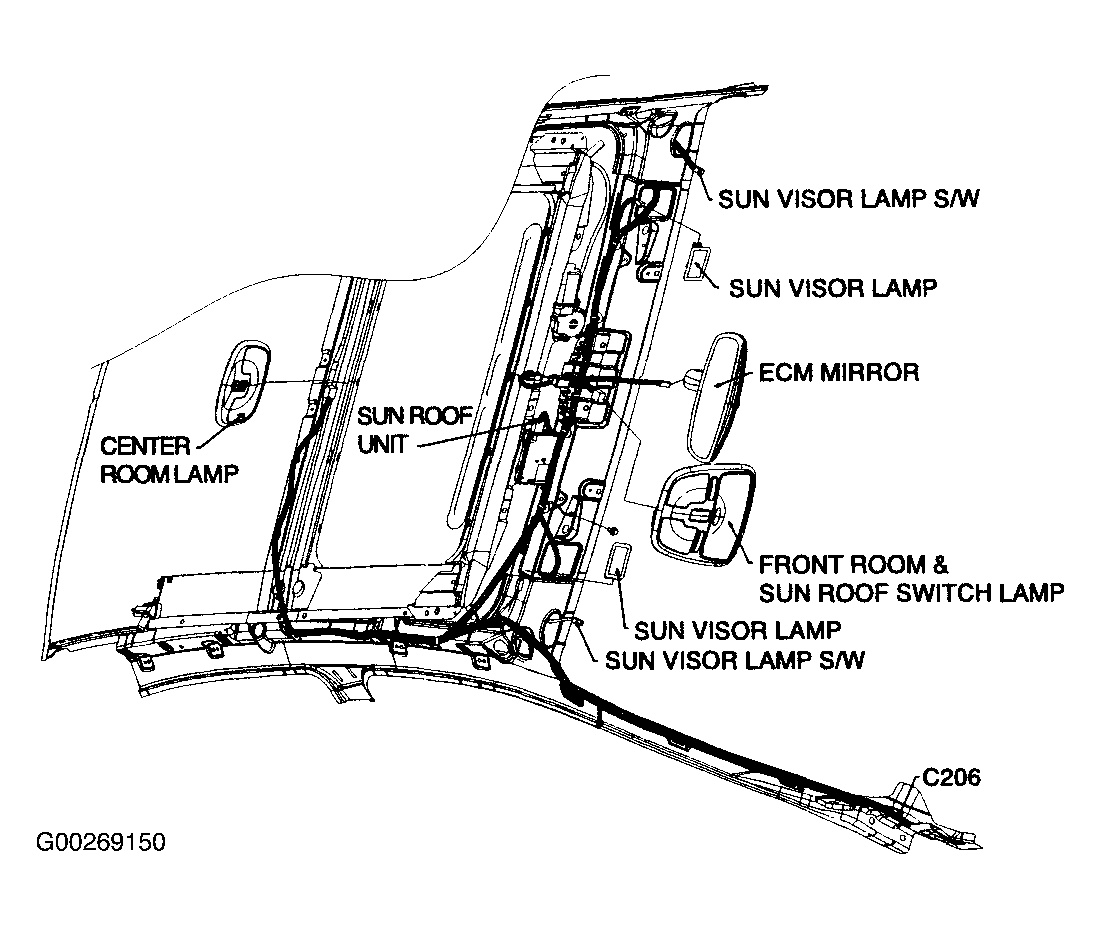

| Sun Roof Unit | Front center of headliner. See Figure. |

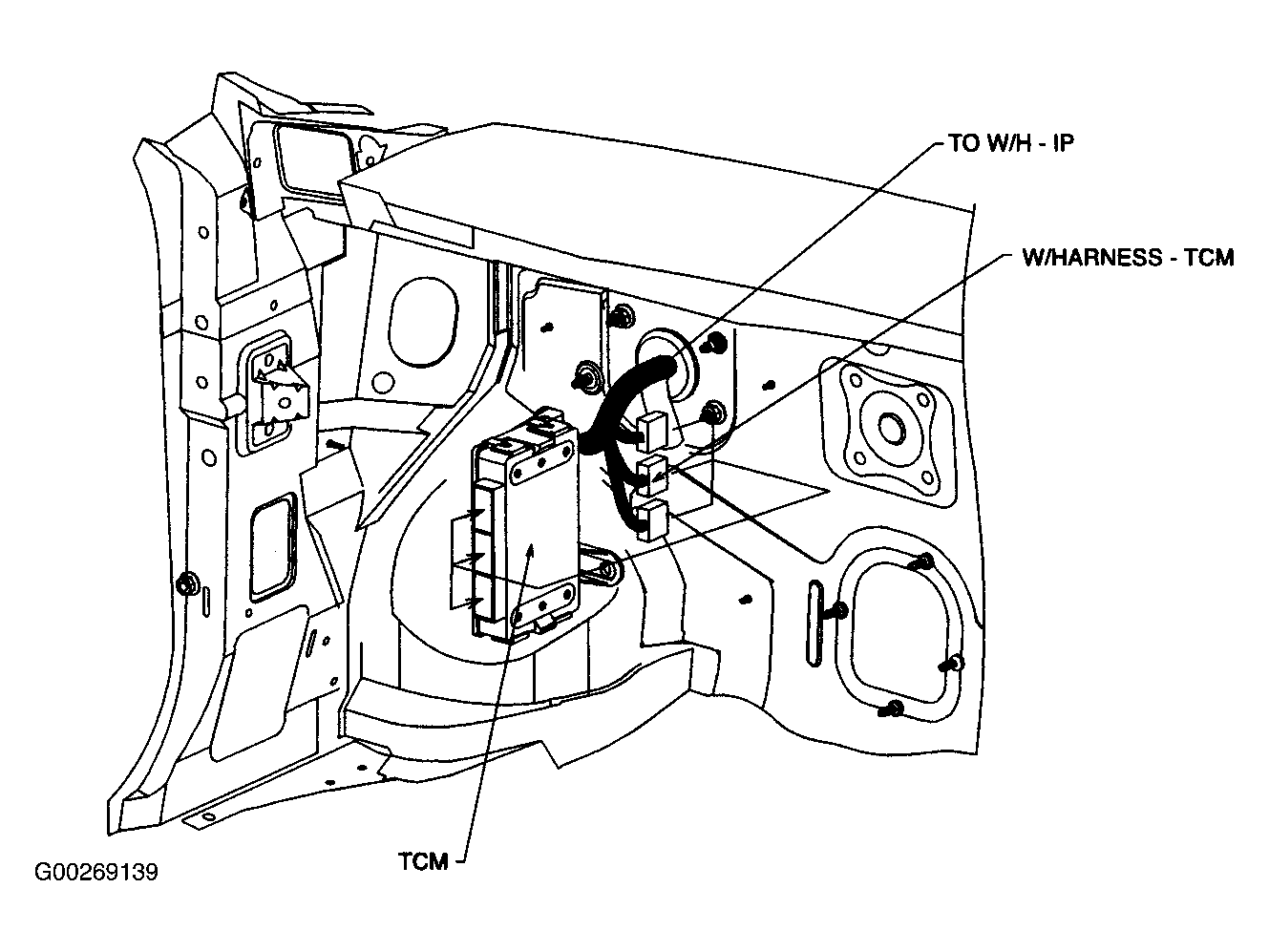

| TCM (Transmission Control Module) | Behind left side of dash. See Figure. |
