2004 Suzuki Swift +FACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the fuel fill cap.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

Disconnect the negative battery cable.
Remove the rear seat. Refer to Seat Cushion Replacement - Rear in Seats.

Fig 1: View of Fuel Sender Assembly Access Cover

Courtesy of GENERAL MOTORS CORP.

Remove the fuel sender assembly access cover.

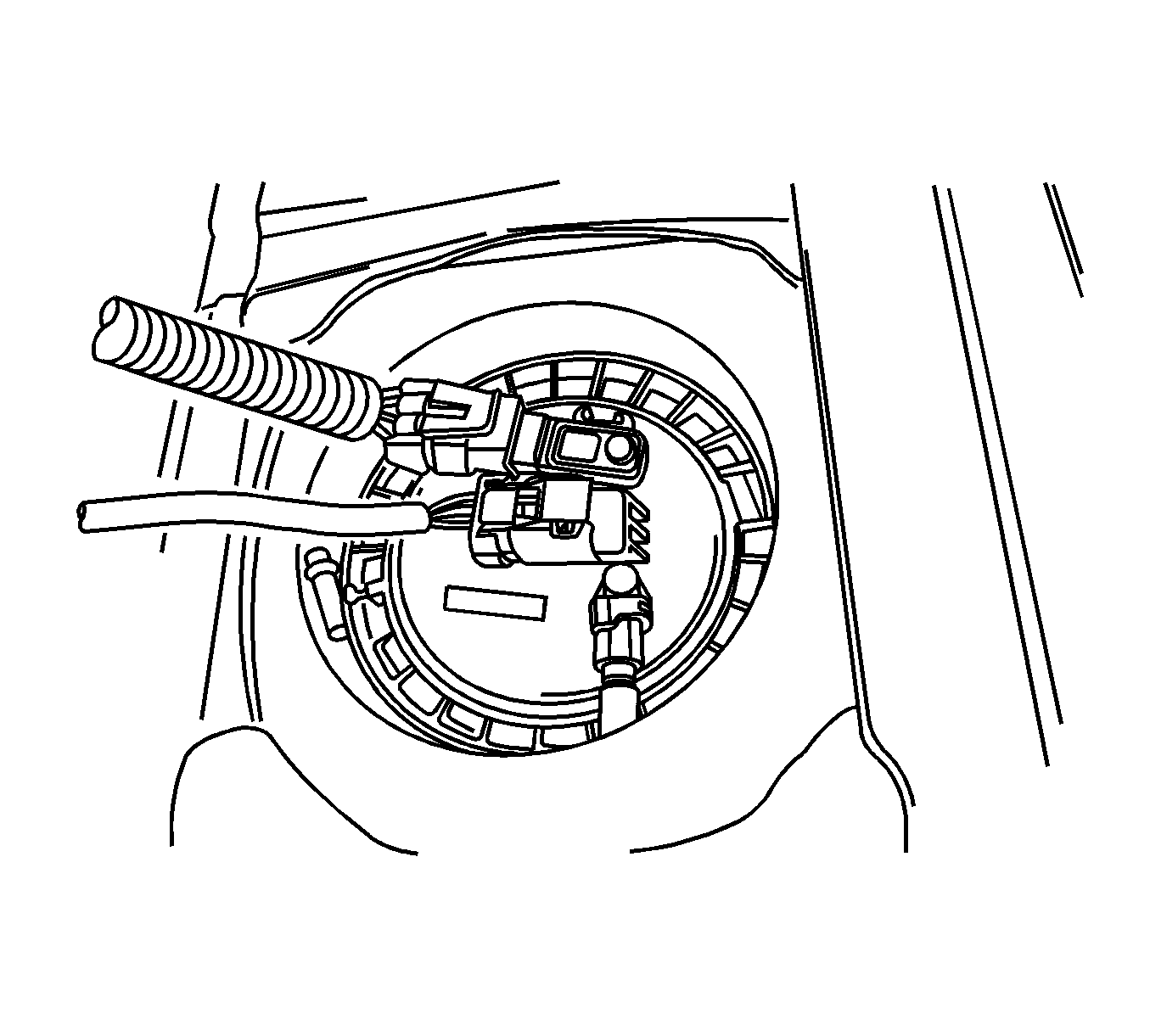

Fig 2: View of Fuel Tank Pressure Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the fuel tank pressure (FTP) sensor electrical connector.
Remove the FTP from the fuel sender assembly.
