2003 Suzuki XL-7 Base, 4WDFACTORY OEM SERVICE PROCEDURE
Fuel Injectors: Aerio
- Using a mechanic's stethoscope, check each fuel injector for operating "clicking" sound as engine is cranked. If all fuel injectors made operating sound, fuel injector circuit is in good condition. If any one or all fuel injectors do not make operating sound, go to next step .
- Disconnect connectors from fuel injectors with ignition switch OFF. Connect ohmmeter between terminals of injector and measure resistance. Resistance should be 10.8-13.2 ohms at 68°F (20°C). If resistance is not as specified, injector is faulty. If all injectors are within specification, go to next step.
- Check for short to each other in fuel injector circuits. See ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in ELECTRICAL. If problem is found, repair as necessary. After repair, retest system. If no problem is found, go to next step.
- Measure voltage between each Black/Red wire terminal and engine ground with ignition switch turned ON. If voltage is between 10-14 volts, go to next step. If voltage is not within specification, Black/Red wire circuit open or shorted to ground. If it is in good condition, check ECM power and ground circuit. See ECM POWER & GROUND CIRCUITS

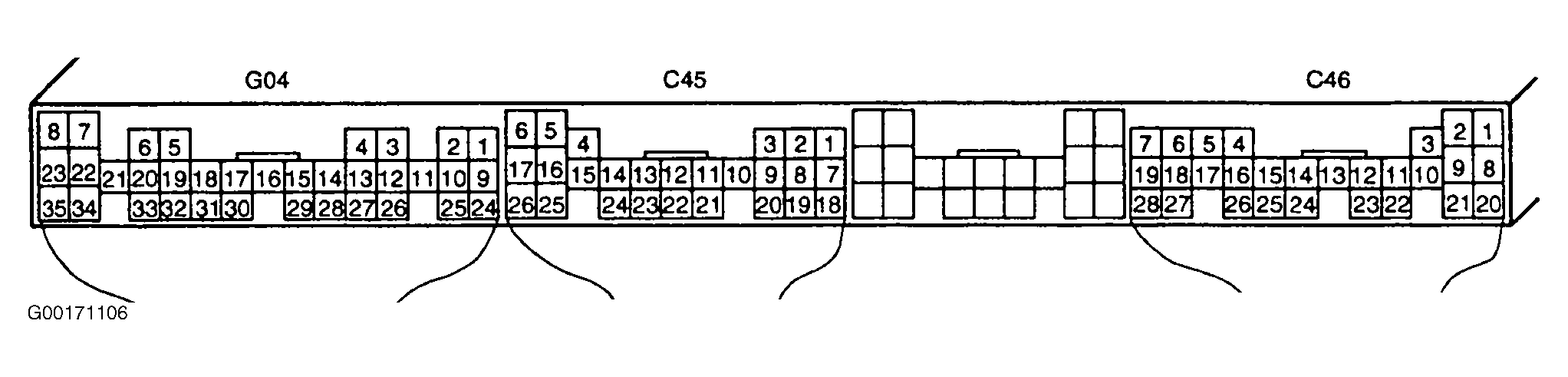

- Turn ignition switch OFF. Disconnect connectors from ECM. ECM is located under instrument panel, behind glove box. Measure resistance between each Blue/Yellow, Blue/White, Blue/Red and Blue/Green wire terminal and vehicle body ground. If resistance is infinite, go to next step. If resistance is out of specification, Blue/Yellow, Blue/White, Blue/Red, Blue/Green wire shorted to ground.
- With ignition switch OFF, measure voltage between Blue/Yellow, Blue/White, Blue/Red, Blue/Green wire terminal and vehicle body ground . Voltage should be zero volts. If voltage is within specification, go to next step. If voltage is not within specification, Blue/Yellow, Blue/White, Blue/Red, Blue/Green wire shorted to power supply circuit.
- With ignition switch ON, measure voltage between Blue/Yellow, Blue/White, Blue/Red, Blue/Green wire terminal and vehicle body ground . Voltage should be 10-14 volts. If voltage is not within specification, Blue/Yellow, Blue/White, Blue/Red, Blue/Green wire circuit open. If voltage is within specification and injector is in good condition, substitute a known-good ECM and recheck.
