Individual Power Window Switch

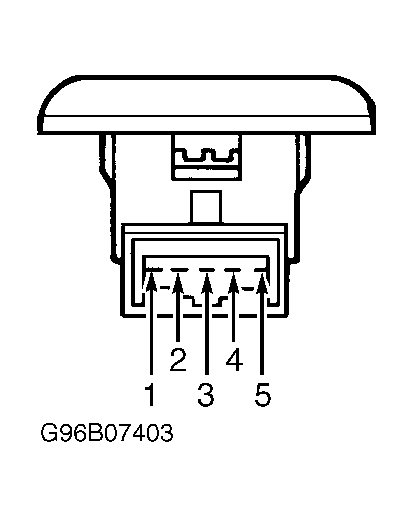

Disconnect individual power window switch connector. Using DVOM, ensure continuity exists across specified switch terminals with switch in specified positions. See INDIVIDUAL POWER WINDOW SWITCH CONTINUITY (ESTEEM) or INDIVIDUAL POWER WINDOW SWITCH CONTINUITY (GRAND VITARA, VITARA & XL7) table. If continuity does not exist, replace individual power window switch.
| Switch Position | (1) Check Continuity Between Terminals No. | ||
|---|---|---|---|
| UP | 1 & 2; 3 & 5 | ||
| OFF | 1 & 2; 4 & 5 | ||
| DOWN | 1 & 3; 4 & 5 | ||
|
|||
| Switch Position | (1) Check Continuity Between Terminals | ||
|---|---|---|---|
| UP | A & B; C & D | ||
| OFF | A & B; D & E | ||
| DOWN | A & C; D & E | ||
|
|||
