1998 Suzuki Swift AutomaticFACTORY OEM SERVICE PROCEDURE

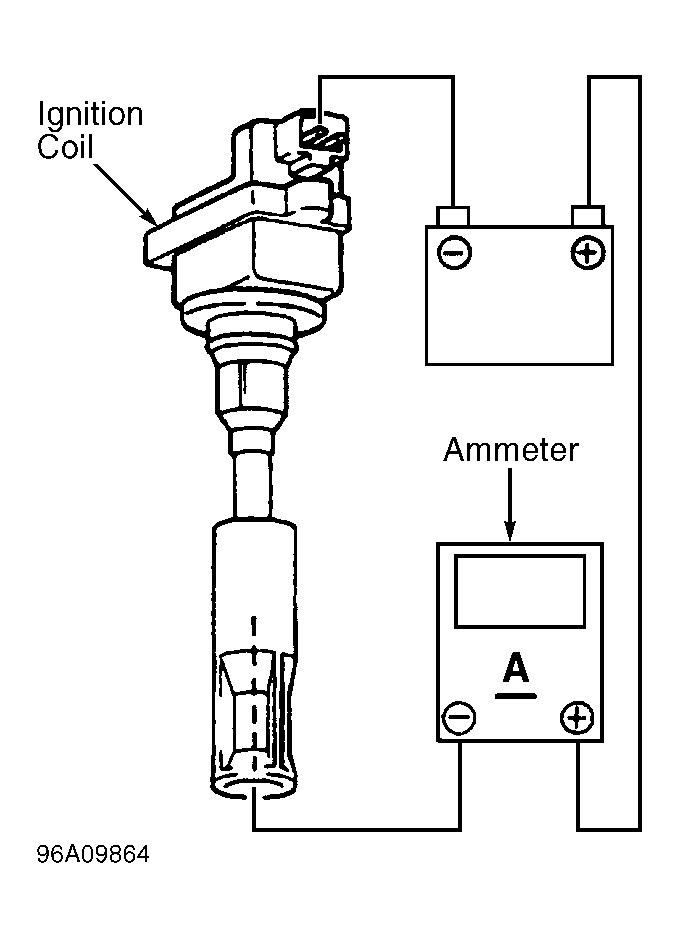

Ignition Coil
IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)
| Application | Primary | Secondary | |||
|---|---|---|---|---|---|
| Esteem | N/A | 11,100-14,900 | |||
| Sidekick 1.6L, X-90 | 0.7-0.9 | 13,000-18,000 | |||
| Sidekick 1.8L | .61-.73 | (1) | |||
| Swift | |||||
| Distributor | 1.08-1.32 | 22,100-29,900 | |||
| Distributorless | N/A | 20,400-27,600 | |||
|
|||||
