1995 Suzuki Swift AutomaticFACTORY OEM SERVICE PROCEDURE
Retrieving Codes
- Ensure Malfunction Indicator Light (MIL) (also known as CHECK ENGINE light) comes on when ignition is on and engine is not running. When engine is started, light should go off. If light remains on while engine is running, a trouble code is present.
- If Malfunction Indicator Light does not come on with key on and engine off, check MIL circuit before continuing. See CHART A-1 and CHART A-2 under CODE CHARTS, for MIL diagnosis. If light glows, but does not flash codes, see CHART A-3 under CODE CHARTS.

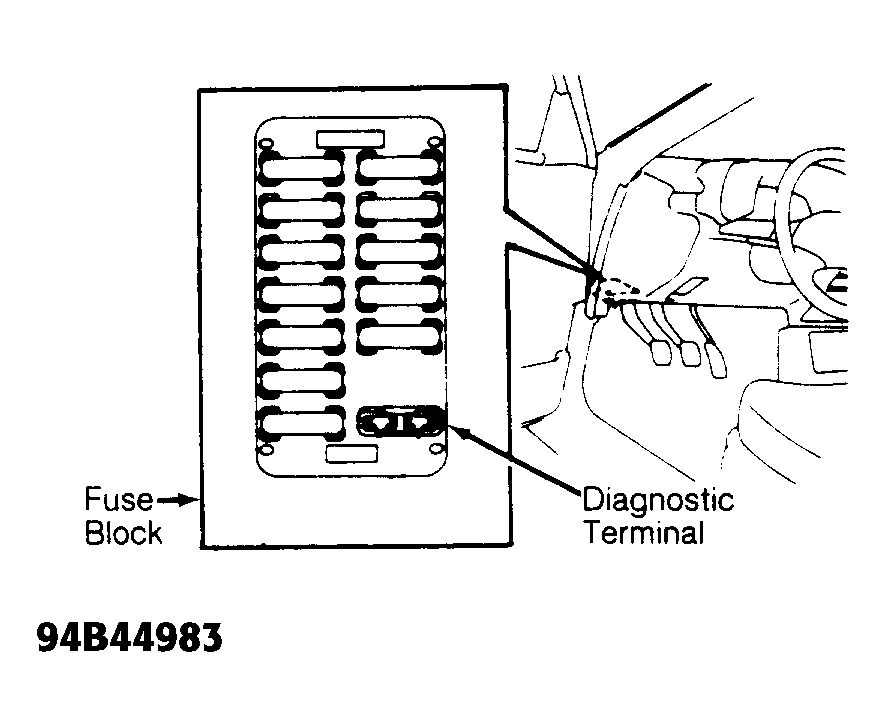

- To retrieve codes, turn ignition on. Install fuse in diagnostic terminal on fuse block, located behind left side of instrument panel. See Fig 1 . MIL will begin flashing. Observe light and count flashes.
