1995 Suzuki Swift AutomaticFACTORY OEM SERVICE PROCEDURE
Main Relay

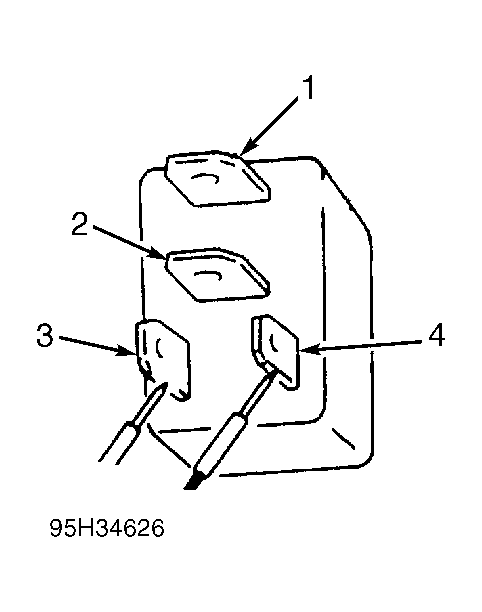

- Disconnect negative battery cable. Remove relay from main fuse box in engine compartment, located between battery and left fenderwell. See Fig 2 . Check for continuity between terminals No. 1 and 2. See Fig 1 .
- Continuity should not be present. If continuity exists, replace relay. Measure resistance between terminals No. 3 and 4. Resistance should be 90-110 ohms. If resistance is not correct, replace relay. Apply battery voltage and ground to terminals No. 3 and 4. Continuity should now be present across terminals No. 1 and 2. If continuity is not present, replace relay.
