1995 Suzuki SamuraiFACTORY OEM SERVICE PROCEDURE
Fuel System: Injector: Removal
- Relieve fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE. Disconnect negative battery cable.
- Remove air intake from top of throttle body. Remove fuel feed pipe clamp from intake manifold. Disconnect fuel feed pipe from throttle body. Remove injector cover.WARNING: To prevent personal injury/damage to injector, DO NOT use more than 70psi (4.9 kg/cm2 ) air pressure to remove injector.

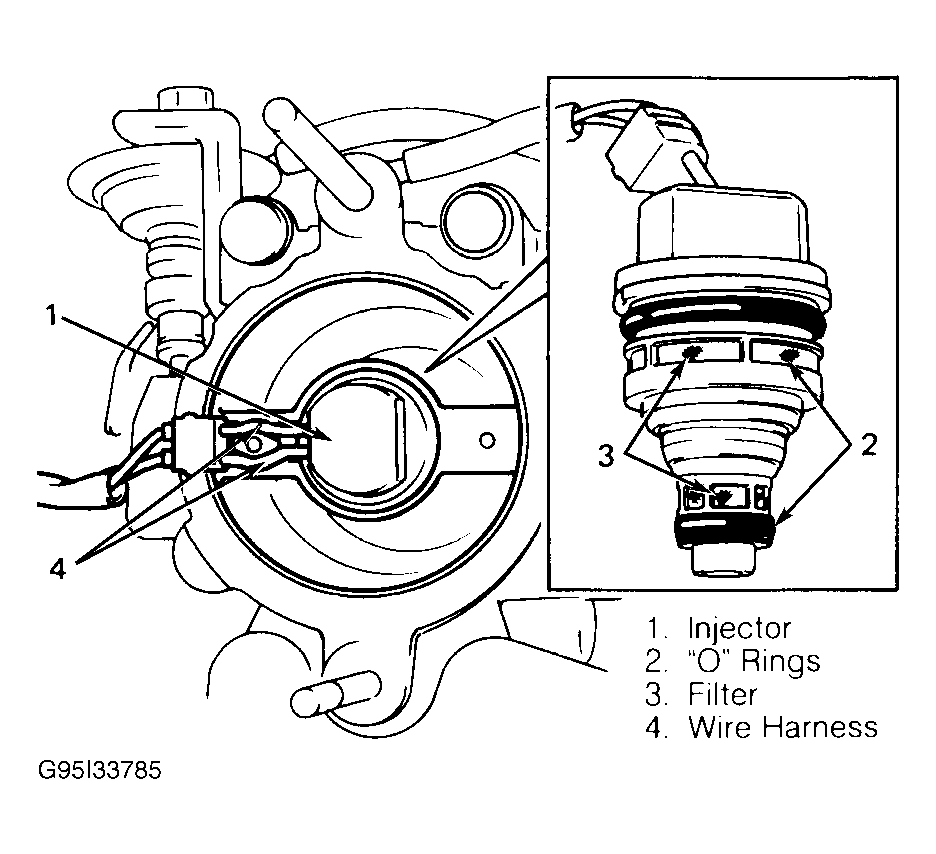

- Unplug injector harness connector. See Fig 1 . Slide injector grommet from throttle body. Place shop towel over injector. To remove injector, apply less than 70 psi (4.9 kg/cm2 ) of compressed air into fuel inlet port of throttle body.
