Ignition Coil Resistance: Samurai

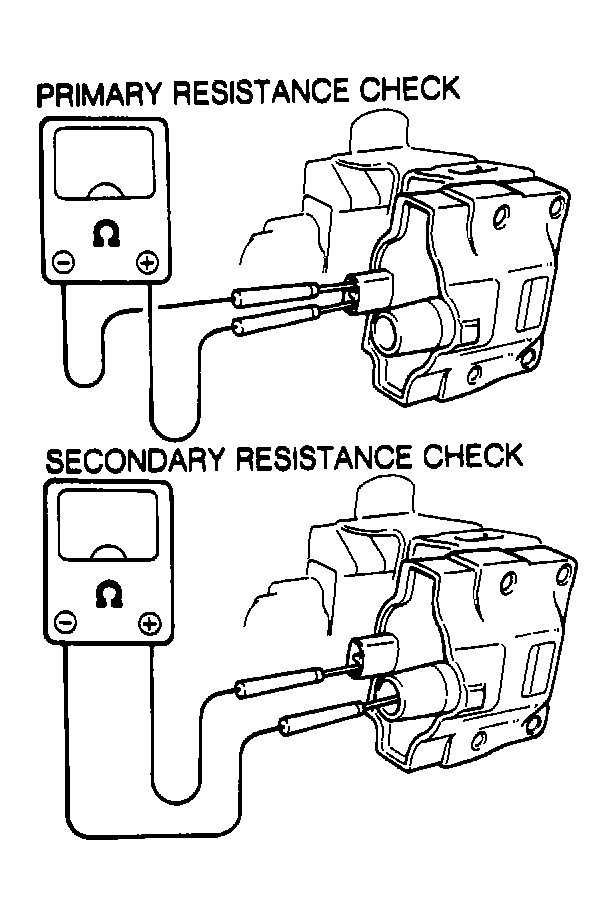

Disconnect secondary cable/wire from coil. Remove primary wire connector from ignition coil. Using ohmmeter, check coil primary and secondary resistances. See the IGNITION COIL RESISTANCE table. See Fig 1 . Replace coil if resistance is not within specification.
| Application | Primary | Secondary | |
|---|---|---|---|
| Samurai | .90-1.10 | 10,200-13,800 | |
| Sidekick | .72-.88 | 10,200-14,000 | |
| Swift | |||
| DOHC | .72-.88 | 10,200-14,000 | |
| SOHC | 1.13-1.38 | 11,500-15,500 | |
