1992 Suzuki Sidekick JS, 2D UtilityFACTORY OEM SERVICE PROCEDURE
Pick-Up Coil
NOTE:
Sidekick uses an integral crank angle sensor within pick-up coil.

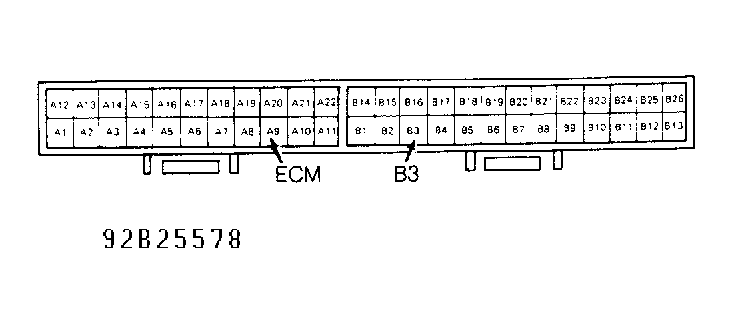

- With ignition off, disconnect ECM connector. ECM is under lower left side of dash. Connect voltmeter between ground and terminal B3. See Fig 1 .
- Remove distributor cap, rotor and shield cover. Turn ignition on. Check voltmeter reading when signal rotor is between magnet and Hall Effect pick-up coil. Voltmeter reading should be 3-5 volts.
- Turn signal rotor so that it is not between magnet and Hall Effect pick-up coil, thus breaking magnetic field. Voltage should be 0-1 volt. If results are not as indicated, inspect wiring and connections and repair as required. If wiring is okay, replace Hall Effect pick-up coil (crank angle sensor).
PICK-UP COIL AIR GAP
| Application | Clearance - In. (mm) |
|---|---|
| Sidekick | Information Not Available |
PICK-UP COIL RESISTANCE - Ohms @ 68°F (20°C)
| Application | Ohms |
|---|---|
| Sidekick | Information Not Available |
