1990 Suzuki Swift GTFACTORY OEM SERVICE PROCEDURE

Throttle Switch Continuity: Notes

THROTTLE SWITCH CONTINUITY

Application Specification
Swift (SOHC) With M/T
Between Terminals "A" & "B"
With .012" (.30 mm) Clearance At Stop Screw Continuity
With .035" (.89 mm) Clearance At Stop Screw No Continuity
With Throttle Wide Open No Continuity
Between Terminals "B" & "C"
With .012" (.30 mm) Clearance At Stop Screw No Continuity
With .035" (.89 mm) Clearance At Stop Screw No Continuity
With Throttle Wide Open Continuity
Between Terminals "A" & "C"
With .012" (.30 mm) Clearance At Stop Screw No Continuity
With .035" (.89 mm) Clearance At Stop Screw No Continuity
With Throttle Wide Open No Continuity

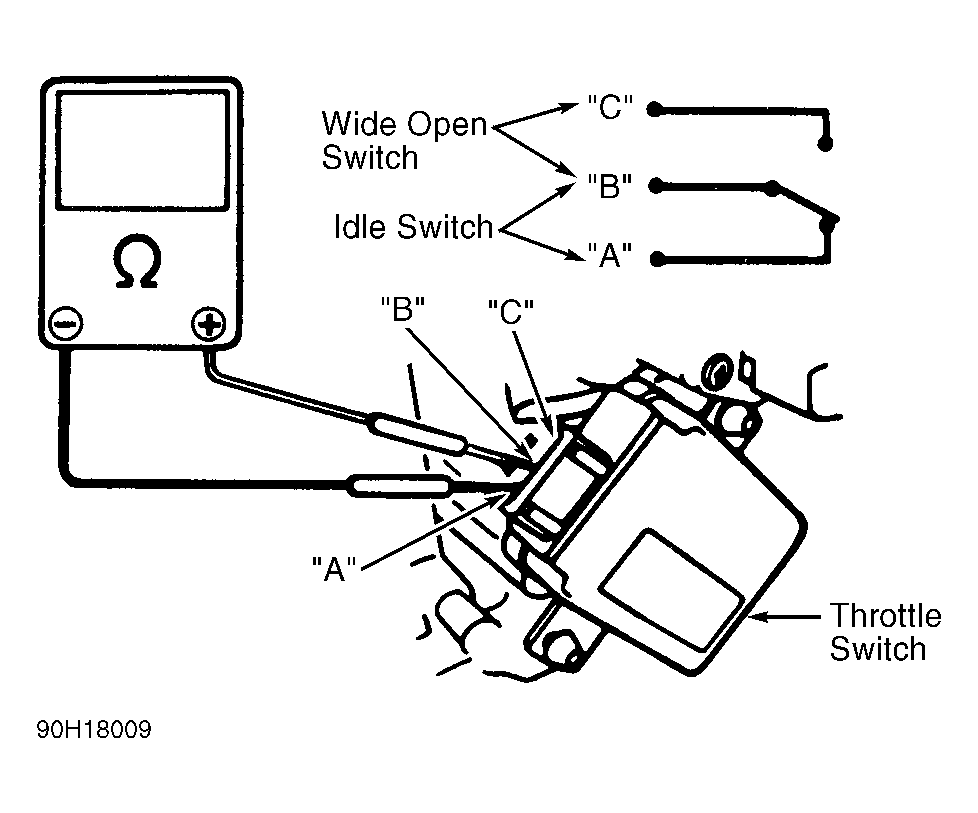

Fig 1: Throttle Switch Connector Terminal ID (Swift SOHC With M/T)
G90H18009Courtesy of SUZUKI OF AMERICA CORP.
