1990 Suzuki Swift GLXFACTORY OEM SERVICE PROCEDURE

Throttle Position Sensor (TPS)

THROTTLE POSITION SENSOR (TPS) RESISTANCE - DOHC

Application		Ohms
Between Terminals "C" & "D"
With .012" (.30 mm) Clearance At Stop Screw		0-2000
With .035" (.89 mm) Clearance At Stop Screw		Infinity
Between Terminals "C" & "A"		3500-6500
Between Terminals "C" & "B"
At Idle		0-500
At Wide Open Throttle		3500-6500

THROTTLE POSITION SENSOR (TPS) RESISTANCE - SOHC A/T

Application ⁽¹⁾

Ohms

Between Terminals "A" & "B"

With .012" (.30 mm) Clearance At Stop Screw

Less Than 5000

With .035" (.89 mm) Clearance At Stop Screw

Infinity

Between Terminals "A" & "D"

4370-8130

Between Terminals "A" & "C"

At Idle

240-1140

At Wide Open Throttle

3170-6600

⁽¹⁾	Throttle position sensor is used only on SOHC with automatic transaxle, SOHC with manual transaxle uses throttle switch.

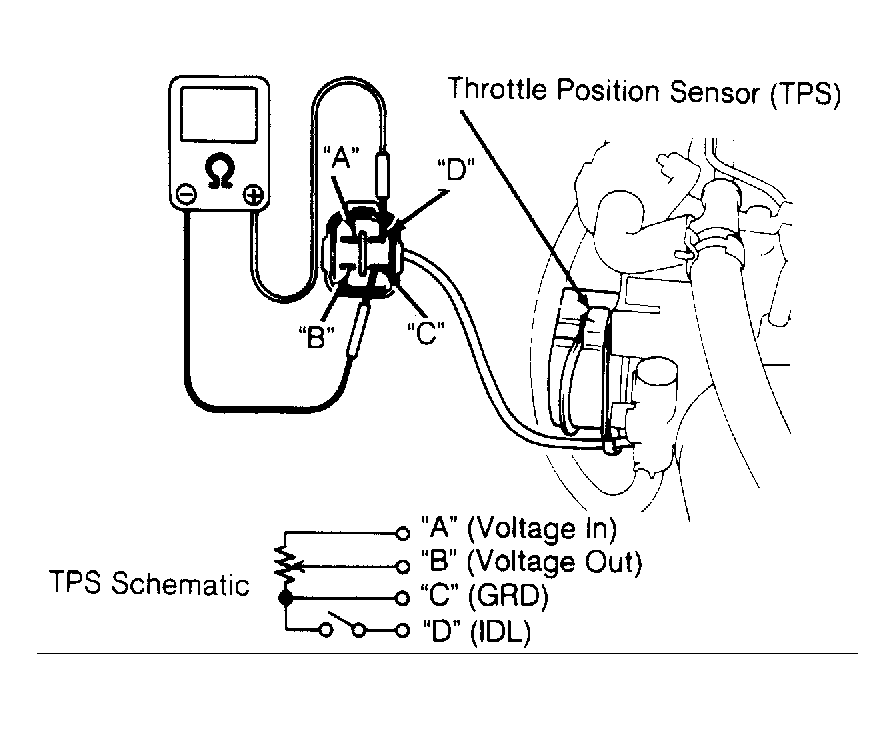

Fig 1: Throttle Position Sensor (TPS) Terminals (DOHC)

Courtesy of SUZUKI OF AMERICA CORP.
