1990 Suzuki SamuraiFACTORY OEM SERVICE PROCEDURE
Vehicle Speed Sensor (All Models Except Sidekick)

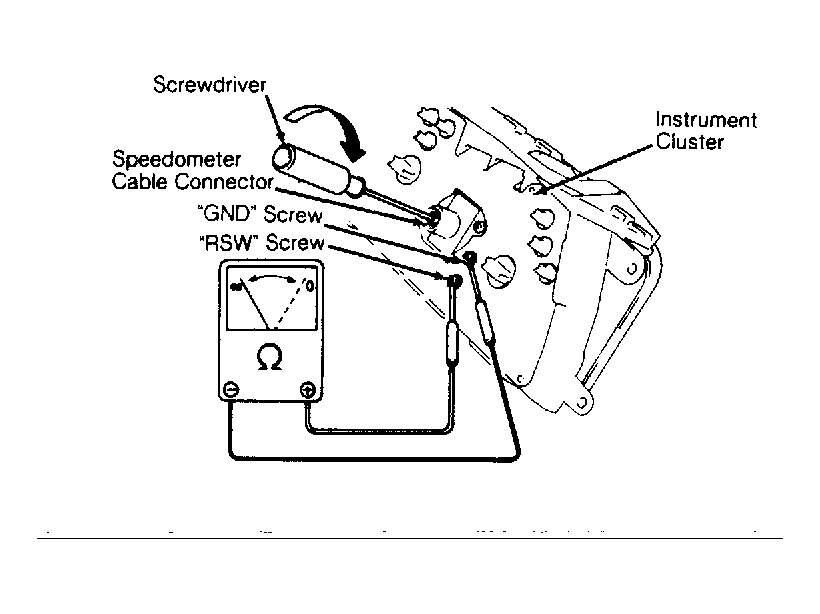

- Disconnect negative battery cable. Remove instrument cluster. Connect ohmmeter between RSW and GND terminals on back of instrument cluster. Insert screwdriver into speedometer cable connector and rotate screwdriver. See Fig 1 .
- Ohmmeter reading should alternate between zero and infinity 4 times for each revolution of speedometer cable. Replace speedometer if vehicle speed sensor does not test as described.
