Feedback System Functional Check

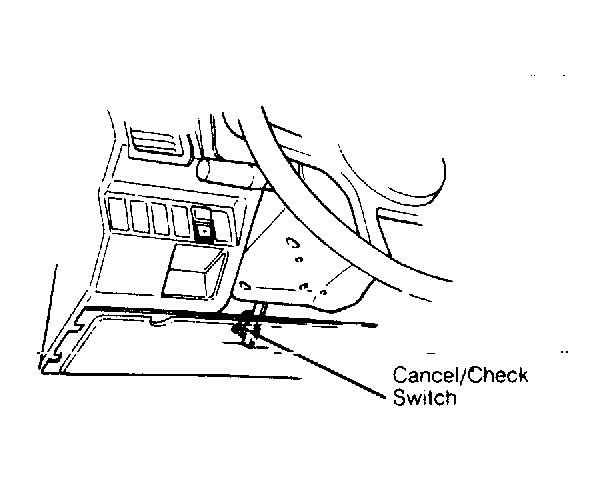

- Turn cancel/check switch on. See Fig 1 . Turn ignition on, but do not start engine. "CHECK ENGINE" light should be on (not flashing). If light is not on, check and repair bulb and/or circuit.
- With "CHECK ENGINE" light operating, start engine and warm to normal operating temperature. Increase engine speed up to 1500-2000 RPM. "CHECK ENGINE" light will flash if system is operating properly. If light does not flash, check the following components:
- Oxygen sensor
- Mixture control solenoid valve
- Coolant switch
- Idle and Wide Open Throttle (WOT) switches
- Electronic Control Module (ECM)
If system is operating properly, turn cancel/check switch off. Light should go out. Stop engine and repeat code retrieval procedure if necessary.
