1987 Suzuki Samurai BaseFACTORY OEM SERVICE PROCEDURE
Power Mirror Switch Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.
REFERENCE TABLE
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove instrument panel left air outlet assembly. Refer to INSTRUMENT PANEL OUTER AIR OUTLET REPLACEMENT - LEFT SIDE . |
|

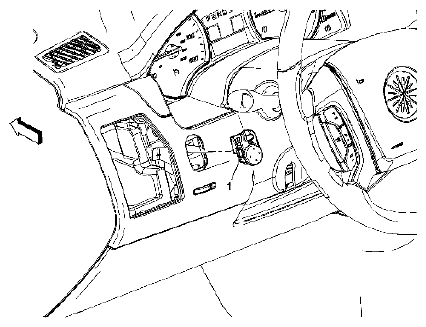

| 1 | Power Mirror Switch Assembly Tip: Reach through the outlet assembly hole, squeeze the tabs inward and push the power mirror switch out through the front of the trim panel. |
