1987 Suzuki Samurai BaseFACTORY OEM SERVICE PROCEDURE
EGR Valve
- Run engine with engine temperature below 131°F (55°C). Ensure that EGR valve diaphragm does not operate. Check by touching diaphragm with finger.CAUTION: Wear gloves in case EGR valve is hot.

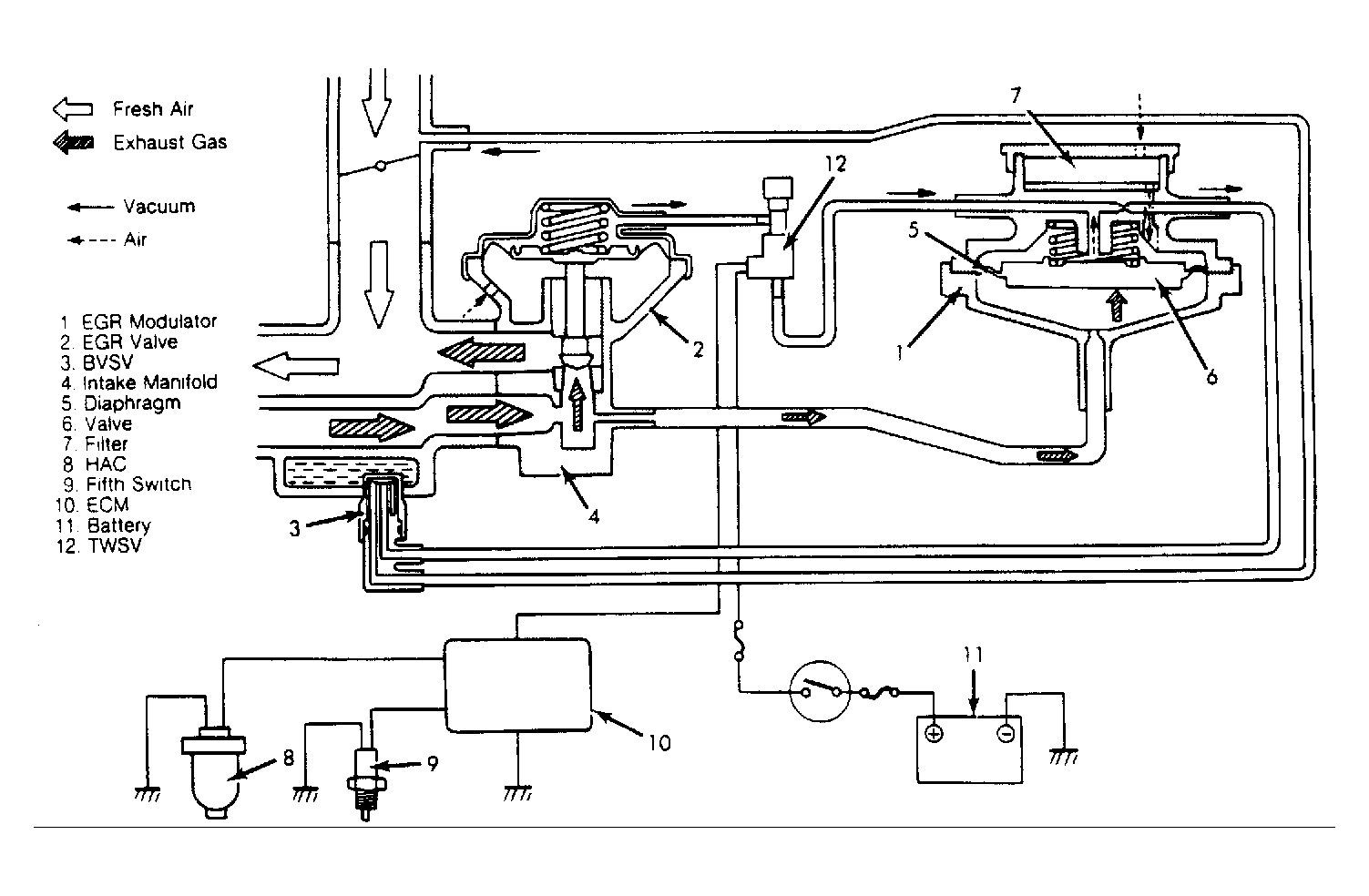

- Warm engine to normal operating temperature. Increase engine speed. Diaphragm should move away from piston side of EGR valve during acceleration. Decelerate engine and check that diaphragm moves toward piston side of EGR valve. See Fig 2 .
