1987 Suzuki Samurai BaseFACTORY OEM SERVICE PROCEDURE
Open Circuit Test

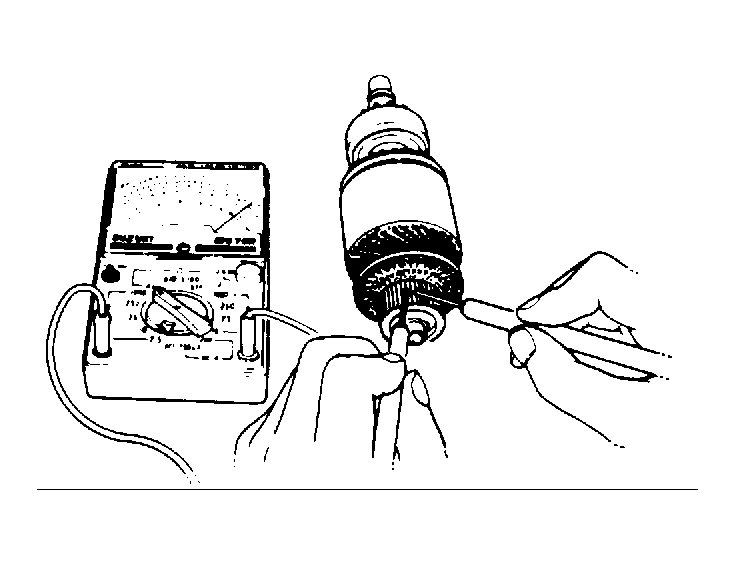

Check for continuity between individual segments of the brush end of the armature. See Fig 1. If there is continuity between all the segments, armature is good, proceed to
