Select Cable: Removal
- Release the shift lock and shift the select lever to the "N range". Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
- Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .
- Remove the center exhaust cover and rear exhaust pipe. Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL .

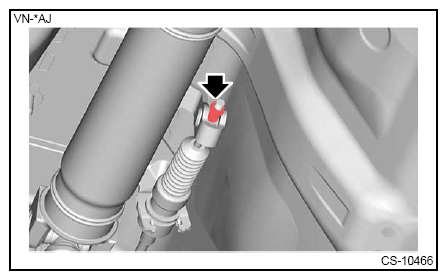

- Disconnect the select cable from the transmission main body.CAUTION:
Do not apply excessive load while holding the part (a).
- Remove the adjusting nut (rear).

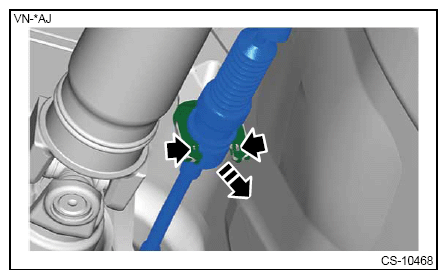

- Raise the claw of clamp and remove the select cable together with the clamp.CAUTION:
Do not apply excessive load while holding the part (a).
- Remove the clamp from the select cable.
- Remove the cable bracket.
