Select Cable: Installation

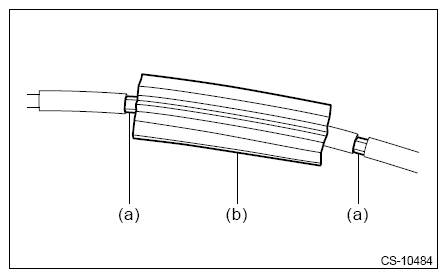

- Check that the protector (b) is set between the clamps (a).
- If the protector (b) is offset, set it between the clamps (a).

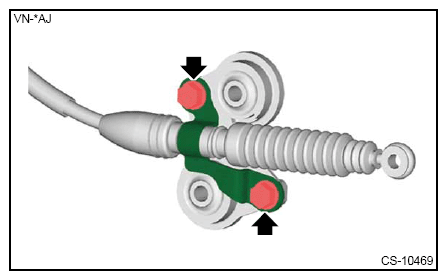

- Install the cable bracket.CAUTION:
Be careful not to twist the boot.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Set a new clamp on the select lever and secure it by bending the claw.NOTE:
Install it with the claw facing the rear side.

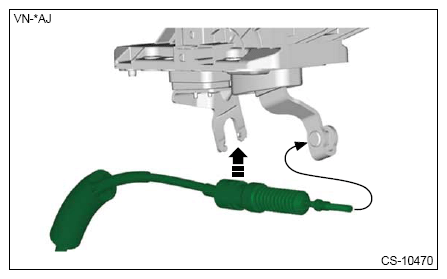

- Insert the select cable into the select lever and secure it with the clamp.CAUTION:

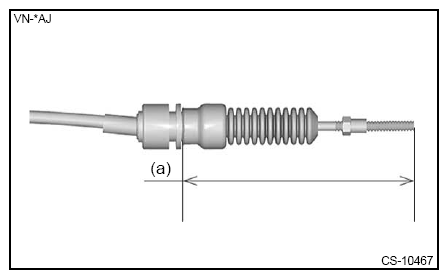

Do not apply excessive load while holding the part (a).
- Temporarily Install the adjusting nut (rear) to the select cable.

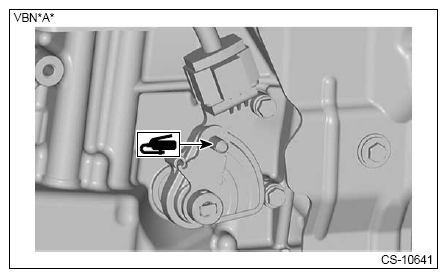

- Apply grease to the shifter arm.
Preparation items:
Grease: NIPPON GREASE NIGTIGHT LTS No. 2 or equivalent

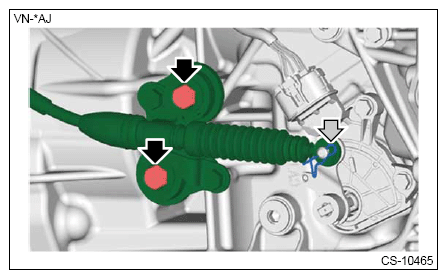

- Connect the select cable to the transmission main body.CAUTION:

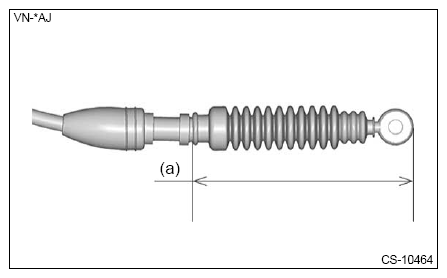

Do not apply excessive load while holding the part (a).
NOTE:Set the washer before installing the snap pin.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Adjust the select cable free play. Ref. to CONTROL SYSTEMS>SELECT CABLE> ADJUSTMENT .
- Install the center exhaust cover and rear exhaust pipe. Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>INSTALLATION .
- Install the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>INSTALLATION>CENTER EXHAUST PIPE (REAR) .
- Release the shift lock and shift the select lever to the "P range". Ref. to CONTROL SYSTEMS>SELECT LEVER>INSTALLATION .
