Fuel Injector Circuit

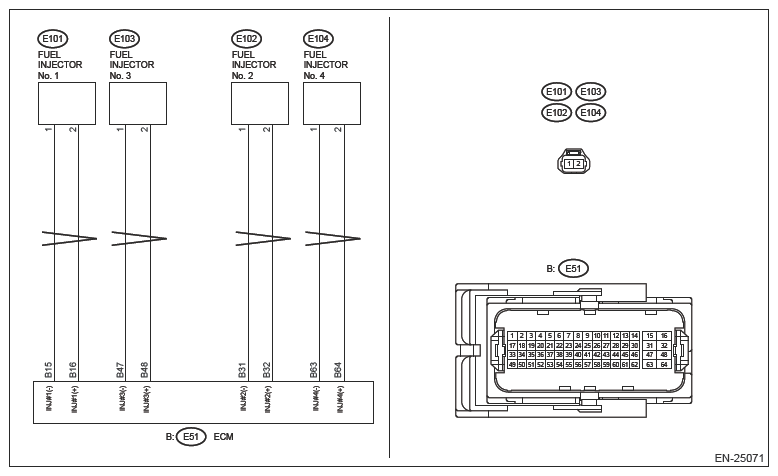

Wiring diagram:
Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM
- Check or repair only faulty parts.
- Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD
- CHECK OPERATION OF EACH FUEL INJECTOR
.
While cranking the engine, check each fuel injector emits operating sound. Use a sound scope or attach a screwdriver to the injector to listen to sounds for this check.
Does the fuel injector emit operating sound?
Yes : Check the fuel pressure. Ref. to MECHANICAL (H4DOTC)>FUEL PRESSURE>INSPECTION
No : Go to 2.
- CHECK HARNESS BETWEEN ECM AND FUEL INJECTOR CONNECTOR (OPEN)
.
- Turn the ignition switch to OFF.
- Disconnect the connector from ECM.
- Disconnect the connector from fuel injector.
- Measure the resistance of harness between ECM and fuel injector connector.
Connector & terminal
#1 (E51) No. 15 - (E101) No. 1:
#1 (E51) No. 16 - (E101) No. 2:
#2 (E51) No. 31 - (E102) No. 1:
#2 (E51) No. 32 - (E102) No. 2:
#3 (E51) No. 47 - (E103) No. 1:
#3 (E51) No. 48 - (E103) No. 2:
#4 (E51) No. 63 - (E104) No. 1:
#4 (E51) No. 64 - (E104) No. 2:
Is the resistance less than 1 Ω?
Yes : Go to 3.
No : Repair the open circuit in harness between ECM and fuel injector connector.
- CHECK HARNESS BETWEEN ECM AND FUEL INJECTOR CONNECTOR (SHORT TO GROUND)
.
Measure the resistance between fuel injector connector and engine ground.
Connector & terminal
#1 (E101) No. 1 - Engine ground:
#1 (E101) No. 2 - Engine ground:
#2 (E102) No. 1 - Engine ground:
#2 (E102) No. 2 - Engine ground:
#3 (E103) No. 1 - Engine ground:
#3 (E103) No. 2 - Engine ground:
#4 (E104) No. 1 - Engine ground:
#4 (E104) No. 2 - Engine ground:
Is the resistance 1 MΩ or more?
Yes : Go to 4.
No : Repair the short circuit to ground in harness between ECM and fuel injector connector.
- CHECK EACH FUEL INJECTOR
.
Check each fuel injector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL INJECTOR>INSPECTION
Is the check result OK?
Yes : Repair the poor contact of ECM connector.
No : Replace the faulty fuel injector. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL INJECTOR
After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE
