2022 Subaru WRX Base, Automatic CVT TransFACTORY OEM SERVICE PROCEDURE
Engine Wiring Harness: Removal
- Remove the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>BATTERY>REMOVAL
- Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>INTAKE MANIFOLD ASSEMBLY>REMOVAL
- Remove the fuel insulator. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL INSULATOR>REMOVAL

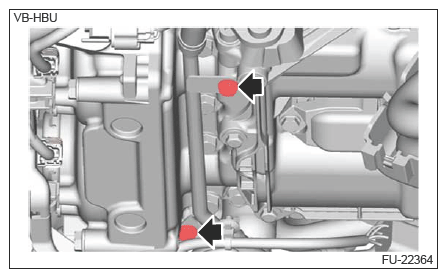

- Remove the bolts which secure the side engine oil cooler pipe.
- Disconnect each connector to remove the engine wiring harness. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>GENERAL DESCRIPTION>COMPONENT>ENGINE WIRING HARNESS
