Transmission Control Device: Removal

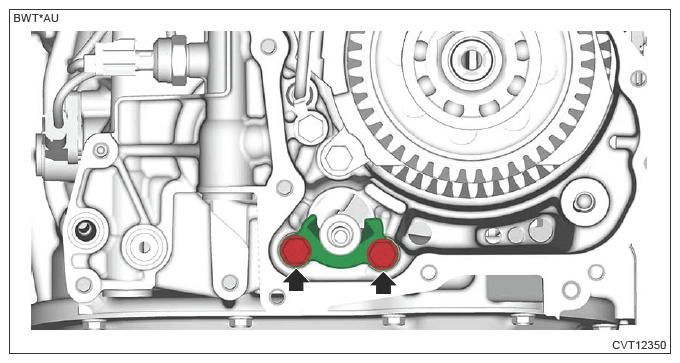

- Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>PARKING PAWL>REMOVAL .
- Remove the parking support.
- Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>INHIBITOR SWITCH>REMOVAL .
- Remove the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>OIL PAN>REMOVAL .

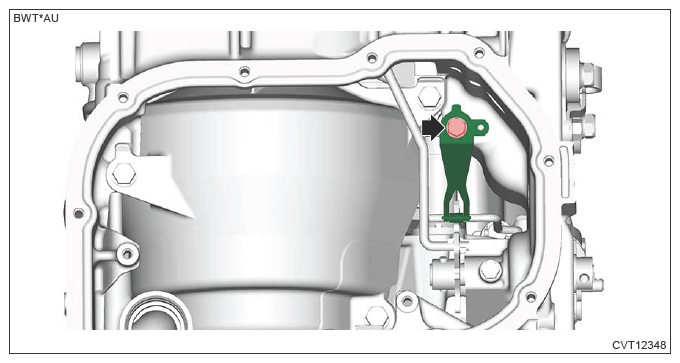

- Remove the detent spring.

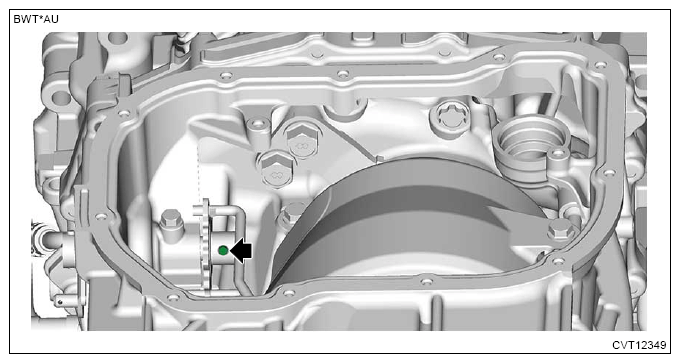

- Remove the spring pin.NOTE:
Be careful not to drop the spring pin in the transmission.

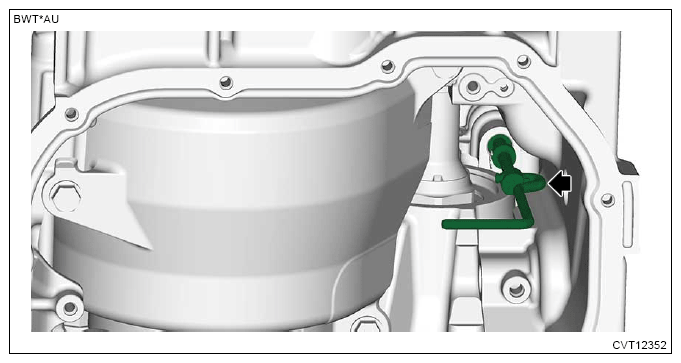

- Remove the shifter arm shaft.

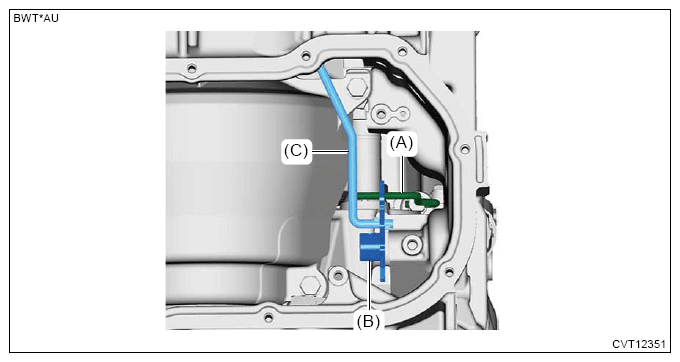

- Remove the manual valve rod (A) and remove the manual plate (B) and parking rod (C) as a unit.
- Remove the parking rod from the manual plate.

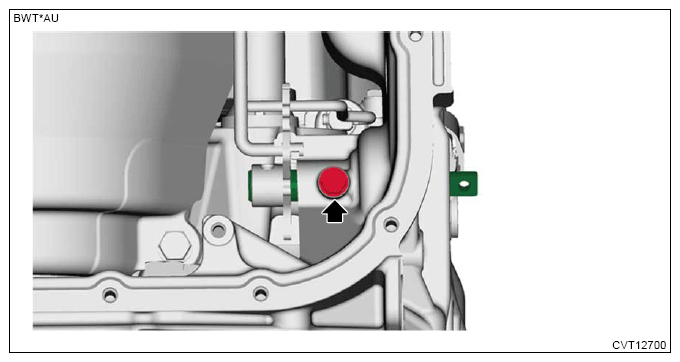

- Remove the manual valve.

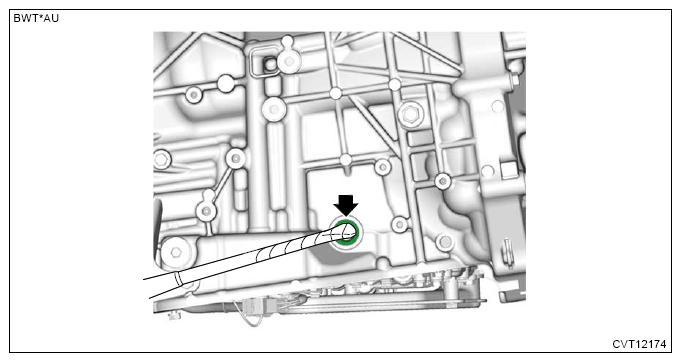

- Remove the oil seal using a flat tip screwdriver wrapped with protection tape.
