2022 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Transmission Case: Disassembly

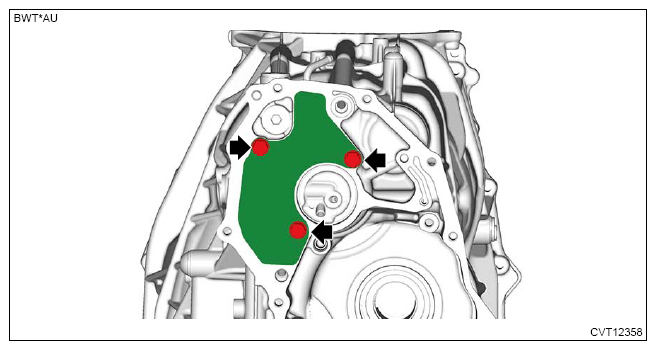

  1. Remove the oil stopper plate.
    G13950697Courtesy of SUBARU OF AMERICA, INC.

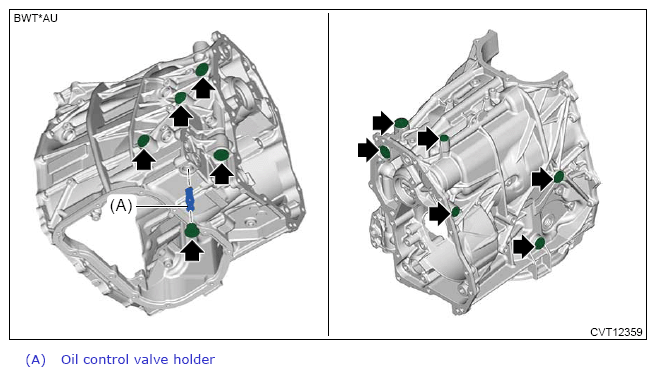

  2. Remove each plug and oil control valve holder.
    G13950698Courtesy of SUBARU OF AMERICA, INC.

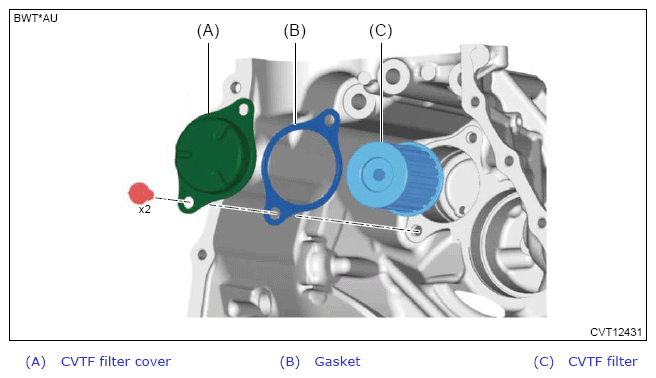

  3. Remove the CVTF filter cover, gasket and CVTF filter.
    G13950699Courtesy of SUBARU OF AMERICA, INC.

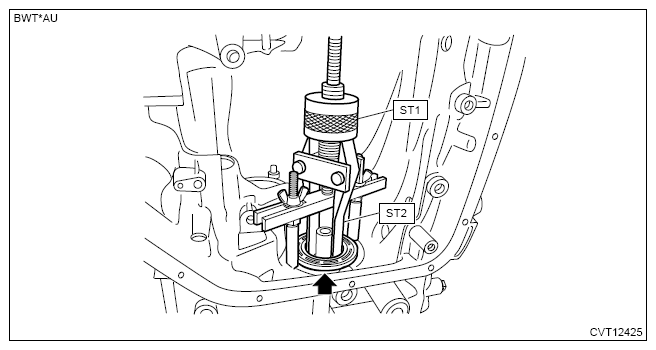

  4. Remove the roller bearing using the ST1 and ST2.
    1. Preparation tool:

      ST1: PULLER ASSY (398527700)

      ST2: CLAW (18760AA000)

      G13950700Courtesy of SUBARU OF AMERICA, INC.

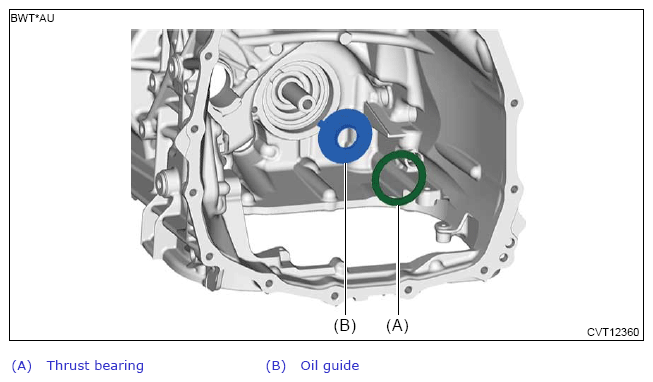

    2. Remove the thrust bearing and oil guide.
    G13950701Courtesy of SUBARU OF AMERICA, INC.
