2022 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Transmission Assembly: Installation

  1. When having overhauled the transmission body, refer to "Preparation for overhaul". Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>PREPARATION FOR OVERHAUL>PROCEDURE .
  2. Replace the differential side retainer oil seal with a new part. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>DIFFERENTIAL SIDE RETAINER OIL SEAL>REPLACEMENT .

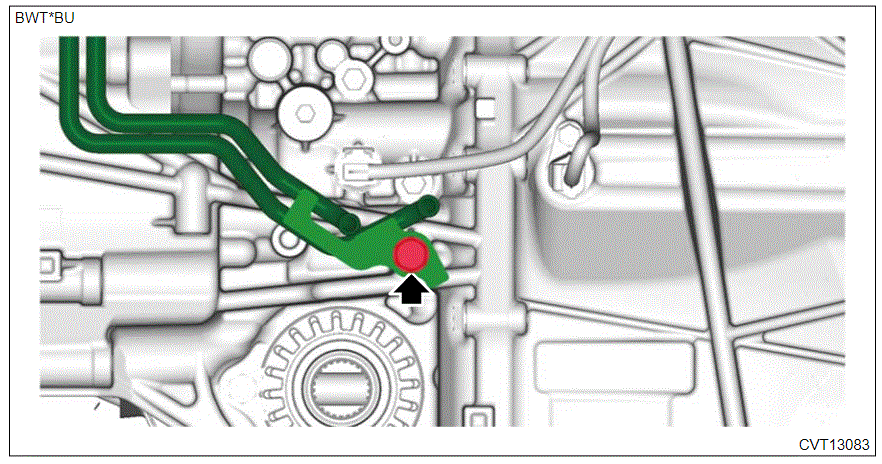

  3. Install the CVTF cooler pipe No. 1. (Model with CVTF cooler (air cool))

    Tightening torque:

    35 N.m (3.6 kgf-m, 25.8 ft-lb)

    G00611029Courtesy of SUBARU OF AMERICA, INC.
  4. Install the transmission case cover (rear) to the transmission body.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

  5. Install the rear cushion rubber to the transmission body. Ref. to TRANSMISSION REAR CROSSMEMBER AND REAR CUSHION RUBBER .
  6. Place the transmission body on the transmission jack.
    CAUTION:

    Make sure that the support plates of transmission jack do not touch the oil pan.

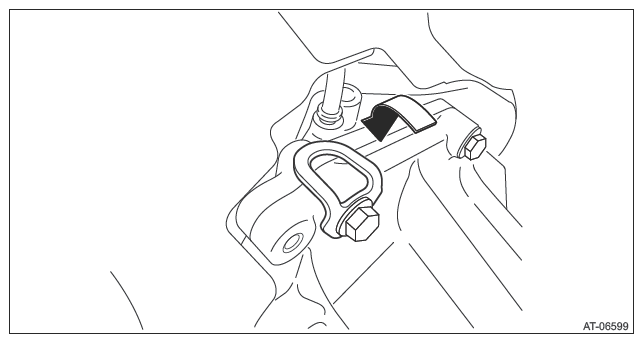

  7. Strike and bend the transmission hanger with a rubber hammer etc. so that it gets in contact with the transmission case.
    CAUTION:

    Do not apply extra overload or impact to the transmission case.

    G13950321Courtesy of SUBARU OF AMERICA, INC.

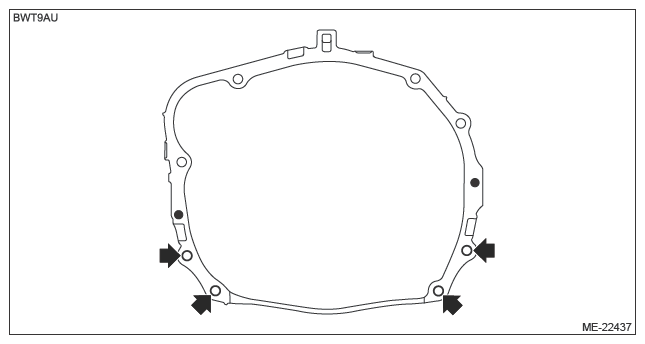

  8. Install the transmission body.
    NOTE:
    • Adjust the position and angle of the transmission jack and engine body if necessary.
    • Temporarily install the bolts and nuts which hold lower side of the transmission.
    G13950322Courtesy of SUBARU OF AMERICA, INC.
  9. Install the transmission rear crossmember. Ref. to TRANSMISSION REAR CROSSMEMBER AND REAR CUSHION RUBBER .
  10. Remove the transmission jack.

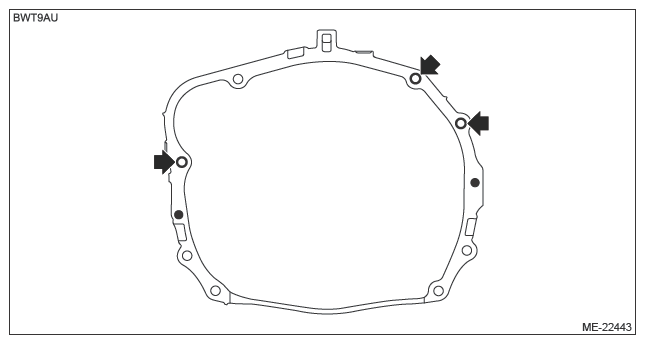

  11. Install the bolts which hold upper side of transmission.

    Tightening torque:

    50 N.m (5.1 kgf-m, 36.9 ft-lb)

    G13950327Courtesy of SUBARU OF AMERICA, INC.
  12. Tighten the bolts and nuts which hold lower side of the transmission.

    Tightening torque:

    50 N.m (5.1kgf-m, 36.9ft-lb)

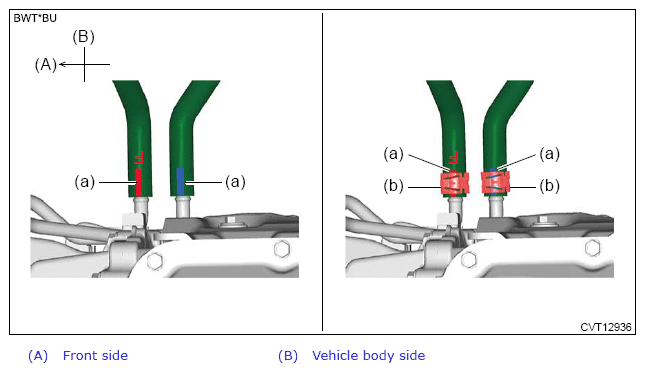

  13. Connect a new CVTF CVT inlet hose and a new CVTF CVT outlet hose. (Model with CVTF cooler (air cool))
    • Transmission side
      NOTE:
      • Face the marks (a) of CVTF CVT inlet hose and CVTF CVT outlet hose in the bottom direction.
      • Align the claws and the centers of the claws of hose clamps (b) with the marks (a) of CVTF CVT inlet hose and CVTF CVT outlet hose.
      • Set the hose clamps (b) so that the both ends of the marks (a) of CVTF CVT inlet hose and CVTF CVT outlet hose can be seen.
      G13950323Courtesy of SUBARU OF AMERICA, INC.

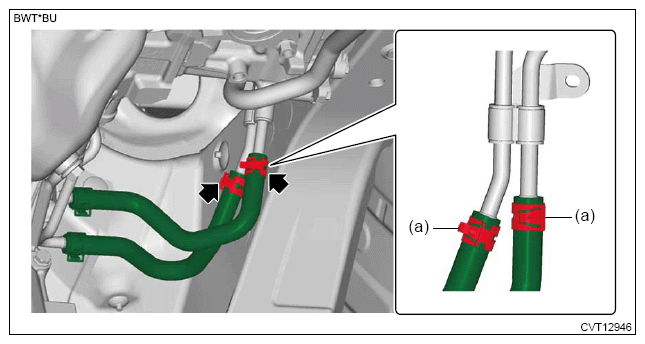

    • CVTF cooler pipe No. 2 side
      NOTE:

      Set the hose clamps (a) as shown in the figure.

    G13950324Courtesy of SUBARU OF AMERICA, INC.

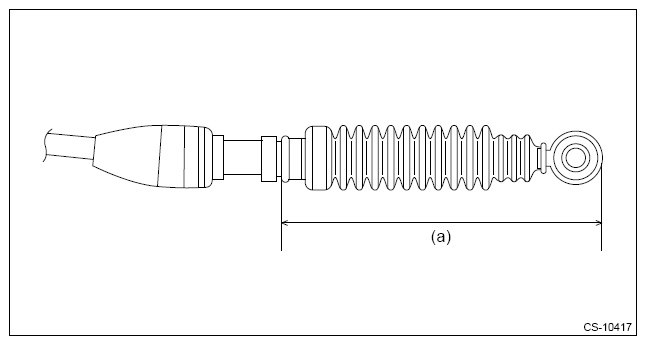

  14. Connect the select cable.
    CAUTION:

    Do not apply excessive load while holding the part (a).

    G13950325Courtesy of SUBARU OF AMERICA, INC.
