Line Pressure Sensor: Removal
- Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
- If CVTF spills over the engine, completely wipe it off to avoid emission of smoke and causing a fire.
- If water or oil contacts the connector terminal of line pressure sensor, replace it with a new part.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the front wheel LH. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
- Remove the crossmember support rear LH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .

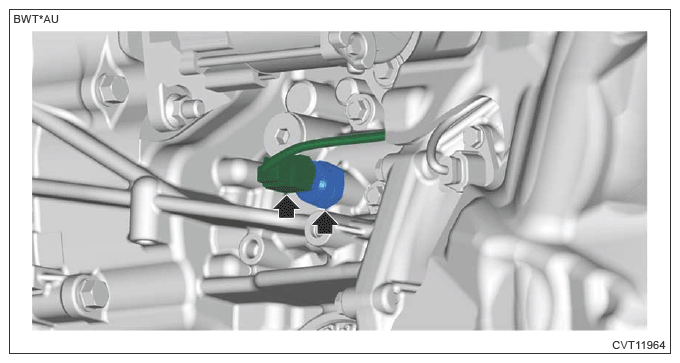

- Disconnect the connector and remove the line pressure sensor.NOTE:
Prepare the container for draining of engine oil.
