Front Differential: Disassembly
When replacing the side bearing, always replace it together with inner race and outer race.

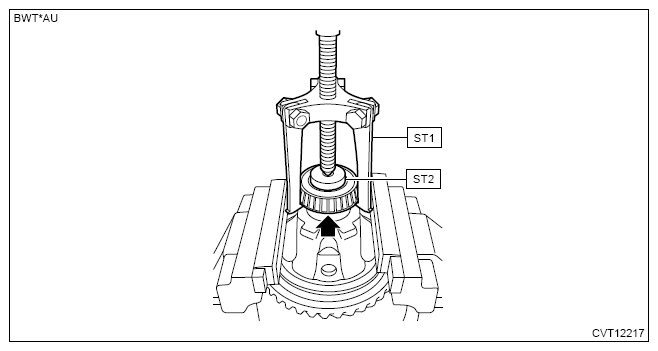

- Remove the side bearing inner race using ST1 and ST2.
Preparation tool:
ST1: PULLER ASSY (399703600)
ST2: SEAT (398497701)

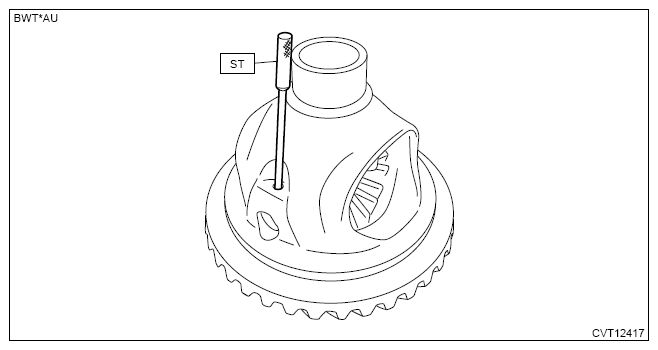

- Using the ST, remove the spring pin.
Preparation tool:
ST: STRAIGHT PIN REMOVER (899904100)

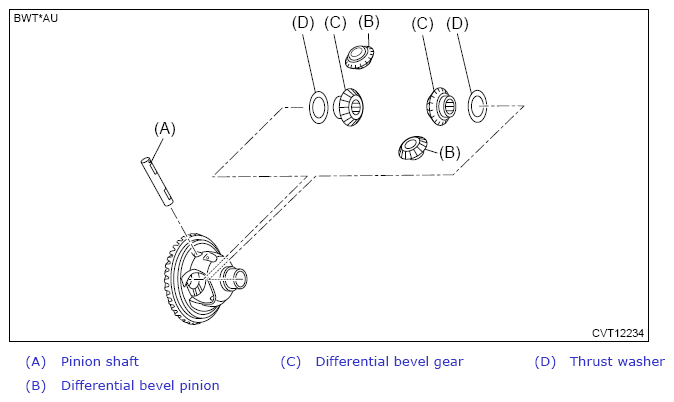

- Remove the pinion shaft, and remove the differential bevel pinion, differential bevel gear and thrust washer.
