NOTE:

When replacing the side bearing, always replace it together with inner race and outer race.

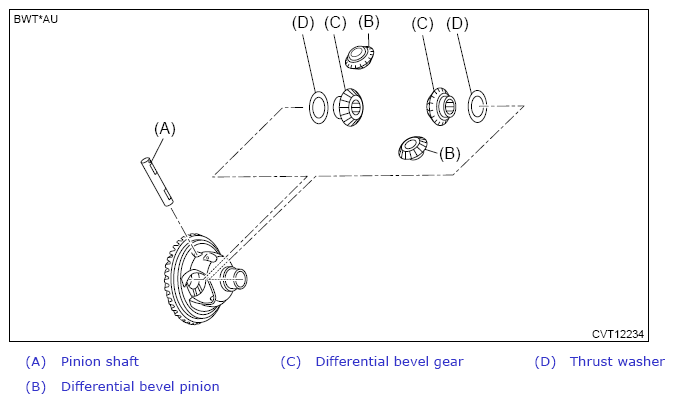

Set the differential bevel pinion, thrust washer and differential bevel gear, and then install the pinion shaft.
NOTE:
Apply differential gear oil on the sliding portion of the differential bevel gear, thrust washer and pinion shaft.

Courtesy of SUBARU OF AMERICA, INC.

Measure the backlash between the differential bevel gear and differential bevel pinion, and select a thrust washer.

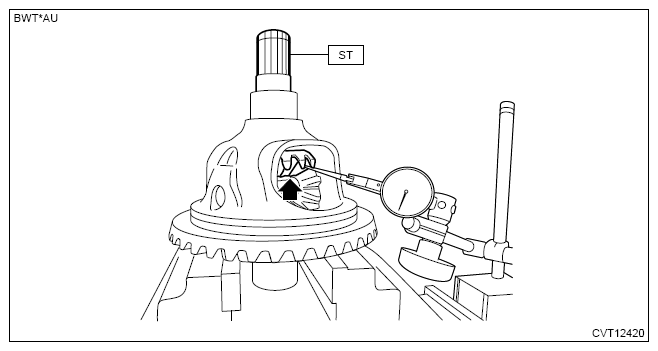

Measure the backlash between the differential bevel gear and differential bevel pinion using the magnet stand and dial gauge (lever type).

NOTE:

Set the dial gauge (lever type) so that its needle contacts the differential bevel gear tooth.
When measuring, fix the differential bevel pinion in place.

Specification:

0.13 - 0.18 mm (0.005 - 0.007 in)

Courtesy of SUBARU OF AMERICA, INC.

If the backlash is outside the standard
1. Measure the thrust washer thickness.
2. Referring to the measured values of backlash and thrust washer, select the thrust washer.

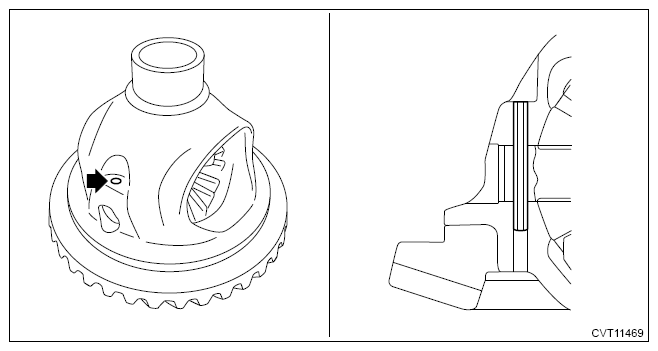

Align the pinion shaft and differential case holes, and install a new spring pin from the driven gear side.

Courtesy of SUBARU OF AMERICA, INC.

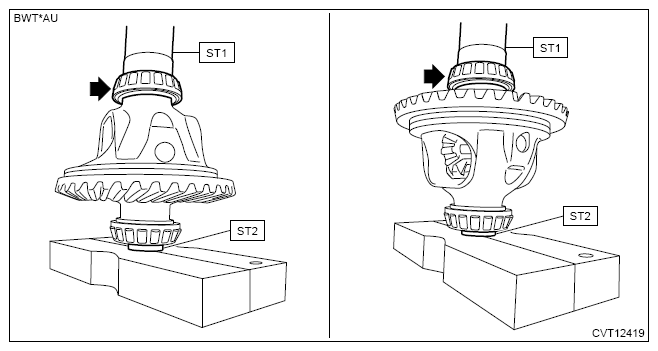

Using the ST1, ST2 and a press, press-fit the side bearing inner race RH and LH.
Preparation tool:

ST1: BUSHING 1-2 INSTALLER (499277100)

ST2: SEAT (398497701)

Courtesy of SUBARU OF AMERICA, INC.
