Extension Case: Assembly

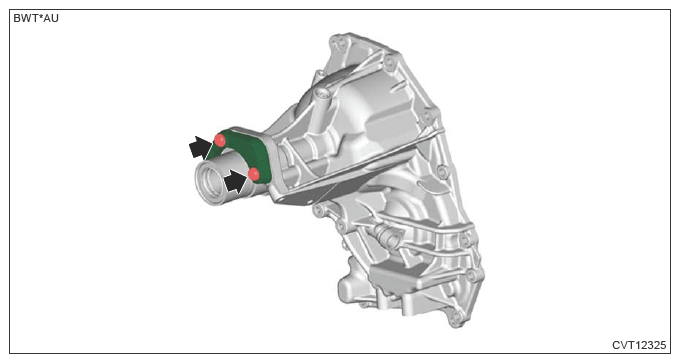

- Install the weight.
Tightening torque:
15 N.m (1.5 kgf-m, 11.1 ft-lb)
- Install the plugs with new O-rings.NOTE:
Apply CVTF to the O-rings.

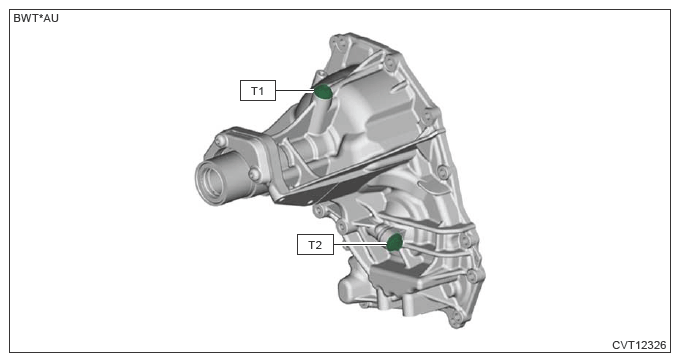

Tightening torque:
T1: 22 N.m (2.2 kgf-m, 16.2 ft-lb)
T2: 35 N.m (3.6 kgf-m, 25.8 ft-lb)

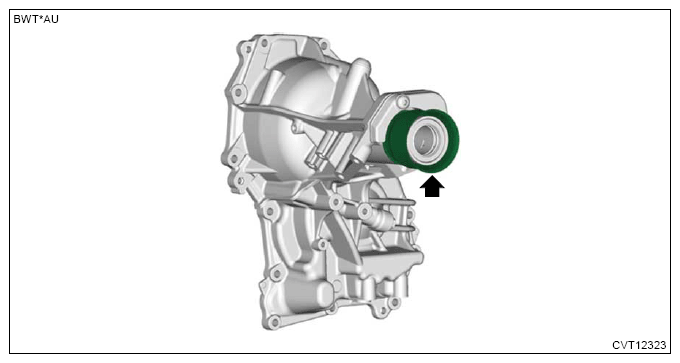

- Install a new extension case oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>EXTENSION CASE OIL SEAL>REPLACEMENT .
- Install the dust cover.
