2022 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
Control Valve Body: Removal
NOTE:
The control valve body is a non-disassembly part.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the TCM. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>TRANSMISSION CONTROL MODULE (TCM)>REMOVAL .
- Disconnect the transmission harness connector from the engine wiring harness.

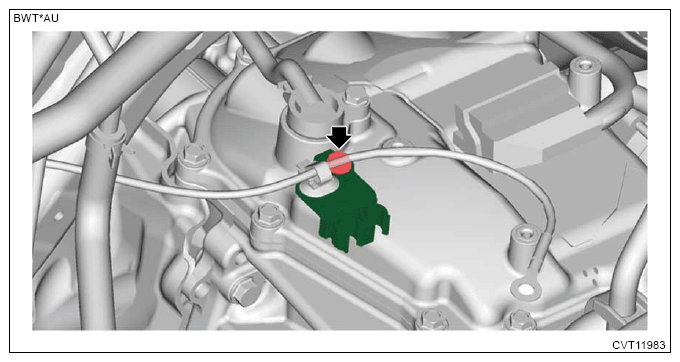

- Remove the air breather hose stay.

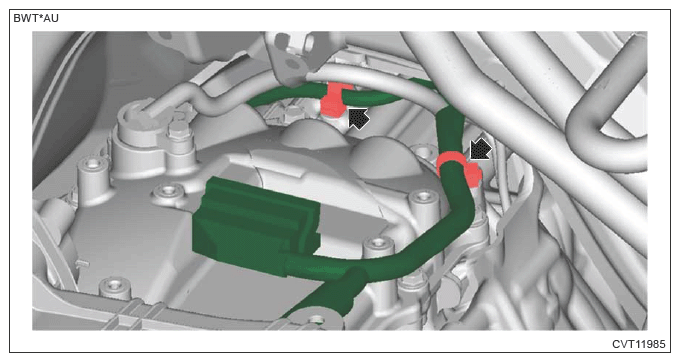

- Remove the transmission harness clip.
- Clean the valve cover vicinity.CAUTION:
Make sure that foreign matter does not get into the throttle body and connector terminals.
