2022 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Front Strut: Removal

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

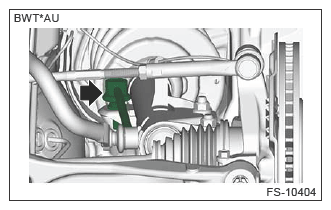

  2. Remove the nut and disconnect the stabilizer link front (upper part).
    G13949588Courtesy of SUBARU OF AMERICA, INC.

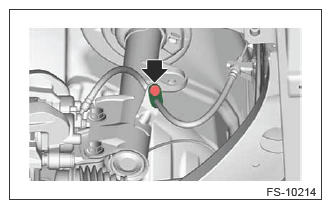

  3. Remove the bolts and then remove the brake hose bracket.
    G13949589Courtesy of SUBARU OF AMERICA, INC.

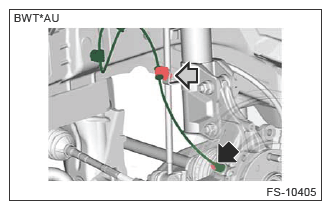

  4. Remove the sensor sub assembly front.
    G13949590Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the strut assembly.

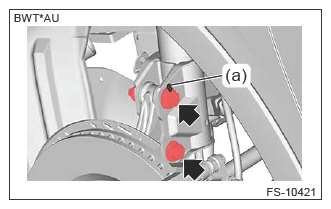

    1. Place an alignment mark (a) on the adjusting bolt and the strut assembly.
    2. Remove the adjusting bolts and flange bolts for the strut assembly.
      CAUTION:

      Turn and remove the nut while holding the bolt side.

      G13949591Courtesy of SUBARU OF AMERICA, INC.

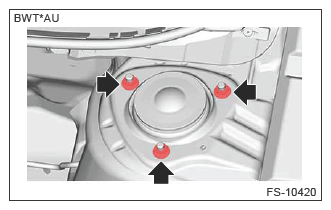

    3. Remove the three nuts securing the mount strut front to the body.
      G13949592Courtesy of SUBARU OF AMERICA, INC.
