2022 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
Front Strut: Disassembly
CAUTION:
- When installing the coil spring compressor to the coil spring, follow the operation manual accompanied with the coil spring compressor during operation.
- Do not use an impact wrench to compress the coil spring.
- Using a coil spring compressor, compress the coil spring.
- Remove the dust seal.
- Remove the mount strut front.NOTE:

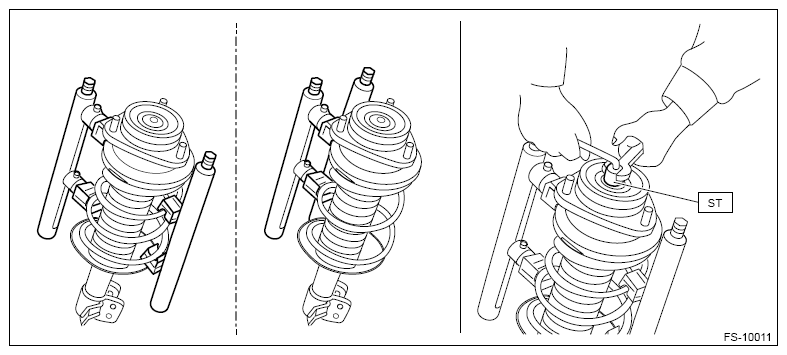

<Example of coil spring compressor installation>
The installing position of coil spring compressor varies depending on the coil spring shape and winding number.
- Using a hexagon wrench, prevent the strut rod of strut COMPL front from turning.
- Using the ST, remove the self-locking nut.
Preparation tool:
ST: STRUT MOUNT SOCKET (20399AG000)
- Remove the mount strut front, the mount bearing front and the dust cover front from the strut COMPL front.
- Gradually decrease the compression force of compressor, and remove the coil spring.
- Remove the helper front.
- Remove the rubber seat LWR.
