2022 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE
Engine Coolant Temperature Sensor: Installation
WARNING: This page is about a different variant/trim than selected.
- Set a new gasket, install the engine coolant temperature sensor using the ST.NOTE:
STRUT MOUNT SOCKET (20099PA000) can also be used.
Preparation tool:
ST: STRUT MOUNT SOCKET (20399AG000)
Tightening torque:
16 N.m (1.6 kgf-m, 11.8 ft-lb)
- Connect the connector (B) to engine coolant temperature sensor and connect the connector

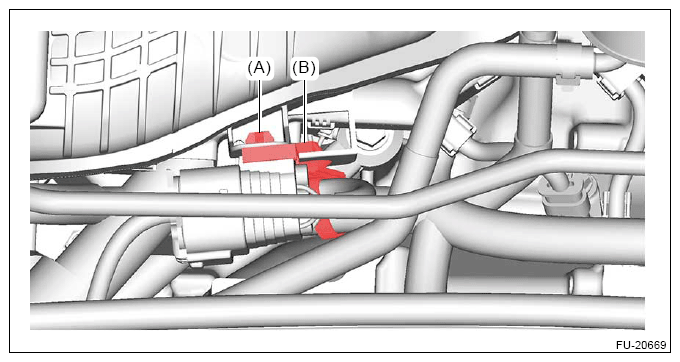

- Install the connector (A) and clip (B).

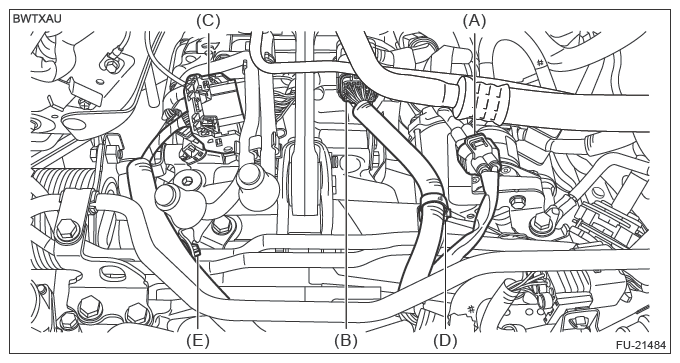

- Install the clip (D) and clip (E), and connect the connector (A), connector (B) and connector (C).
- Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Fill engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
