2022 Subaru Outback BaseFACTORY OEM SERVICE PROCEDURE

Electrical Specification

WARNING: This page is about a different variant/trim than selected.
G13627314Courtesy of SUBARU OF AMERICA, INC.
Description Connect or No. Terminal No. Signal (V) Note
Ignition SW ON After warm-up (at engine OFF) Engine ON After warm-up (at idle)
Crankshaft position sensor Power supply E52 8 5 5 -
Signal E52 14 0 or 5 0 or 5 Waveforms 1 and 8
Ground E52 22 0 0 -
Intake camshaft position sensor RH E52 20 0 or 5 0 or 5 Waveform 1
LH E52 29 0 or 5 0 or 5 Waveform 1
Exhaust camshaft position sensor RH E52 21 0 or 5 0 or 5 Waveform 1
LH E52 13 0 or 5 0 or 5 Waveform 1
Camshaft position sensor ground E52 30 0 0 -
Front oxygen (A/F) sensor IP (+) signal E51 43 2 - 3 2 - 4 Waveform 2
VS (+) signal E51 56 2 - 3 3 - 5 Waveform 2
COM signal E51 44 2 - 3 3 - 4
Heater signal E51 65 Battery voltage 0 or battery voltage Waveform 4
Rear oxygen sensor (+) signal E51 31 2 - 3 2 - 3 Waveform 3
(-) signal E51 30 2 - 3 2 - 3 -
Heater signal E51 27 Battery voltage 0 or battery voltage Waveform 4
Air flow sensor Signal B61 63 0 1 Waveform 12
Ground B61 62 0 0 -
Intake air temperature sensor (Integrated with air flow sensor) B61 3 2 - 3 2 - 3 -
Engine coolant temperature sensor E52 15 1 - 3 1 - 3 -
Engine oil temperature sensor E52 24 1 - 3 1 - 3 -
Manifold absolute pressure sensor E51 47 2 1 -
Intake air temperature sensor (Integrated with manifold absolute pressure sensor) E51 59 2 - 3 2 - 3 -
Fuel pressure sensor Main signal E51 60 1 - 1.6 1 -
Sub signal E51 58 3 - 3.6 3 - 3.6 -
CPC pressure sensor E52 16 1 - 4 1 - 4 -
Knock sensor RH E51 42 2.5 2.5 -
LH E51 55 2.5 2.5
Accelerator pedal position sensor Main power supply B61 1 5 5
Main signal B61 16 Fully closed: 0.4 - 1 Fully open: 2.4 - 3.7 Fully closed: 0.4 - 1 Fully open: 2.4 - 3.7 Waveforms 2, 3, 5 and 6
Main ground B61 61 0 0 -
Sub power supply B61 14 5 5 -
Sub signal B61 42 Fully closed: 0.4 - 1 Fully open: 2.4 - 3.7 Fully closed: 0.4 - 1 Fully open: 2.4 - 3.7 -
Sub ground B61 48 0 0 -
Tumble generator valve RH Position signal E51 28 1 1 Fully closed: 1 Fully opened: 3 Waveform 5
Motor open E51 9 0 0 When in operation: Waveform 5
Motor closed E51 8 0 0 When in operation: Waveform 5
Tumble generator valve LH Position signal E51 29 1 1 Fully closed: 1 Fully opened: 3 Waveform 6
Motor open E51 11 0 0 When in operation: Waveform 6
Motor closed E51 10 0 0 When in operation: Waveform 6
Intake oil control solenoid RH E51 7 Battery voltage 0 or battery voltage Drive frequency: 125 Hz Waveform 7
LH E51 6 Battery voltage 0 or battery voltage Drive frequency: 125 Hz Waveform 7
Exhaust oil control solenoid RH E51 5 Battery voltage 0 or battery voltage Drive frequency: 125 Hz Waveform 7
LH E51 4 Battery voltage 0 or battery voltage Drive frequency: 125 Hz Waveform 7
Purge control solenoid valve E51 2 Battery voltage Battery voltage When in operation: 0 or battery voltage
Ignition control #1 E51 24 0 0 or 5 Waveform 8
#2 E51 37 0 0 or 5 Waveform 8
#3 E51 50 0 0 or 5 Waveform 8
#4 E51 63 0 0 or 5 Waveform 8
EGR control valve A (+) E51 25 0 or battery voltage 0 or battery voltage -
A (-) E51 51 0 or battery voltage 0 or battery voltage -
B (+) E51 38 0 or battery voltage 0 or battery voltage
B (-) E51 64 0 or battery voltage 0 or battery voltage
Leak check valve assembly Switching valve B61 5 Battery voltage Battery voltage Operating: 0
Vacuum pump B61 10 Battery voltage Battery voltage Operating: 0
Pressure sensor E52 31 1 - 4 1 - 4 When ignition switch is turned to ON: atmospheric pressure
Fuel pump control unit Control signal B61 25 ON: 0 or battery voltage OFF: 0 0 or battery voltage Waveform 9
Diagnostic signal B61 34 ON: Battery voltage OFF: 0 Battery voltage
High-pressure fuel pump HI E52 3 - - Measurement prohibited
LO E52 4     Measurement prohibited
Fuel injector Power supply 1 E51 1 Battery voltage Battery voltage -
Power supply 2 E51 14 Battery voltage Battery voltage -
#1 (+) E52 2 0 - Measurement is prohibited while the engine is running.
#1 (-) E52 1 0 -
#2 (+) E52 10 0 -
#2 (-) E52 9 0 -
#3 (+) E52 18 0 -
#3 (-) E52 17 0 -
#4 (+) E52 26 0 -
#4 (-) E52 25 0 -
Electronic throttle control Power supply E51 49 5 5 -
Main signal E51 34 Fully closed: Approx. 0.7 Fully open: Approx. 3.9 Fully closed: Approx. 0.7 Fully open: Approx. 3.9 -
Sub signal E51 32 Fully closed: Approx. 4.4 Fully open: 1.1 Fully closed: Approx. 4.4 Fully open: 1.1 -
Ground E51 20 0 0 -
Motor (+) E51 13 0 0 or battery voltage Drive frequency: 10 kHz
Motor (-) E51 26 0 0 or battery voltage Drive frequency: 10 kHz
Electronic throttle control motor power supply B61 65 Battery voltage Battery voltage -
Electronic throttle control relay control B61 36 0 0 -
Electronic wastegate valve Position signal E52 23 1 - 1.4 1 - 1.4 -
Motor (+) E51 39 0 0 or battery voltage -
Motor (-) E51 52 0 0 or battery voltage -
Electronic air by-pass valve E51 12 Battery voltage Battery voltage -
Radiator main fan Control signal B61 23 0 0 ON
Diagnostic signal B61 18 Battery voltage Battery voltage -
Main fan relay control B61 12 0 0 -
Radiator sub fan Control signal B61 37 0 0 ON
Diagnostic signal B61 31 Battery voltage Battery voltage -
Sub fan relay control B61 50 0 0
Self-shutoff relay control B61 49 0 0
Starter relay control B61 9 3 3 Waveform 11
Starter cut relay control B61 8 Battery voltage Battery voltage Waveforms 10 and 11
Starter switch B61 4 0 0 Waveform 10
Starter switch 2 B61 19 0 0 Waveform 10
Accessory cut request B61 51 Battery voltage Battery voltage Waveform 10
Engine speed output B61 24 0 0 or battery voltage Waveform 11
Brake switch 1 (Brake switch) B61 35 When brake pedal is depressed: 0 When brake pedal is released: Battery voltage When brake pedal is depressed: 0 When brake pedal is released: Battery voltage -
Brake switch 2 (Stop light switch) B61 20 When brake pedal is depressed: Battery voltage When brake pedal is released: 0 When brake pedal is depressed: Battery voltage When brake pedal is released: 0
Neutral position switch E51 17 ON: 0 OFF: Battery voltage ON: 0 OFF: Battery voltage Switch is ON when select lever is in "P" range or "N" range.
Oil level switch E52 11 0 0 Oil level LOW: Battery voltage
Ignition switch B61 46 Battery voltage Battery voltage Waveform 11
Delivery mode switch B61 21 Battery voltage Battery voltage When the fuse is installed: 0
Blow-by leak diagnosis E52 12 0 0 At the time of open circuit (fault): 5
DC/DC converter boost command E51 23 0 or battery voltage 0 or battery voltage -
Starter relay diagnosis B61 55 6 - 10 6 - 10 -
DC/DC converter voltage monitor B61 54 0 - 16 0 - 16 -
TCM start command input E51 19 Battery voltage Battery voltage -
LIN communication B61 56 - - -
Immobilizer communication B61 43 - - -
CAN communication (P/U1 CAN) HI B61 45 - - -
LO B61 58 - - -
CAN communication ((I)_P/U2 CAN) HI B61 44 - - -
LO B61 57 - - -
Control module power supply B61 13 Battery voltage Battery voltage -
  B61 26 Battery voltage Battery voltage -
Backup power supply B61 39 Battery voltage Battery voltage -
Sensor power supply B61 2 5 5 -
  B61 15 5 5 -
  E51 62 5 5 -
  E52 7 5 5 -
Ground Body B61 64 0 0 -
Sensor E51 22 0 0 -
E52 5 0 0 -
Engine 1 B61 52 0 0 -
Engine 2 B61 27 0 0 -
Engine 3 B61 40 0 0 -
Engine 4 E51 40 0 0 -
Engine 5 E51 53 0 0 -
Engine 6 E52 19 0 0 -
Engine 7 E52 27 0 0 -
Engine 8 B61 53 0 0 -
NOTE:
  • After engine is warmed up, attach the check board for measurement.
  • Place the select lever in "P" range or "N" range.
  • Turn the A/C to OFF.
  • Turn all the accessory switches to OFF.
  • Waveforms vary depending on a measurement environment and vehicle condition.
  • Oscilloscope waveform illustrated here is an example for Reference. Noise and chattering in waveform are omitted  .

1. Waveform 1

G13202299Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Crankshaft position sensor signal (E52) No. 14 (+) - Engine ground 3 (B61) No. 40 (-):
Intake camshaft position sensor RH (E52) No. 20 (+) - Engine ground 3 (B61) No. 40 (-):
Intake camshaft position sensor LH (E52) No. 29 (+) - Engine ground 3 (B61) No. 40 (-):
Exhaust camshaft position sensor RH (E52) No. 21 (+) - Engine ground 3 (B61) No. 40 (-):
Exhaust camshaft position sensor LH (E52) No. 13 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition While engine idling

2. Waveform 2

G13627316Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Front oxygen (A/F) sensor IP (+) signal (E51) No. 43 (+) - Engine ground 3 (B61) No. 40 (-):
Front oxygen (A/F) sensor VS (+) signal (E51) No. 56 (+) - Engine ground 3 (B61) No. 40 (-):
Accelerator pedal position sensor main signal (B61) No. 16 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition (a) accelerator pedal fully closed (b) accelerator pedal half open (c) accelerator pedal fully opened

3. Waveform 3

G13627317Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Rear oxygen sensor (+) signal (E51) No. 31 (+) - Rear oxygen sensor (-) signal (E51) No. 30 (-):
Accelerator pedal position sensor main signal (B61) No. 16 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition (a) Accelerator pedal fully closed (b) Accelerator pedal fully opened

4. Waveform 4

G13202302Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Front oxygen (A/F) sensor heater signal (E51) No. 65 (+) - Engine ground 3 (B61) No. 40 (-):
Rear oxygen sensor heater signal (E51) No. 27 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition While engine idling

5. Waveform 5

G13627319Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Tumble generator valve RH position signal (E51) No. 28 (+) - Engine ground 3 (B61) No. 40 (-):
Tumble generator valve RH motor open (E51) No. 9 (+) - Engine ground 3 (B61) No. 40 (-):
Tumble generator valve RH motor closed (E51) No. 8 (+) - Engine ground 3 (B61) No. 40 (-):
Accelerator pedal position sensor main signal (B61) No. 16 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition (a) Accelerator pedal fully closed (b) Accelerator pedal fully opened

6. Waveform 6

G13627320Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Tumble generator valve LH position signal (E51) No. 29 (+) - Engine ground 3 (B61) No. 40 (-):
Tumble generator valve LH motor open (E51) No. 11 (+) - Engine ground 3 (B61) No. 40 (-):
Tumble generator valve LH motor closed (E51) No. 10 (+) - Engine ground 3 (B61) No. 40 (-):
Accelerator pedal position sensor main signal (B61) No. 16 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition (a) Accelerator pedal fully closed (b) Accelerator pedal fully opened

7. Waveform 7

G13202305Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Intake oil control solenoid RH (E51) No. 7 (+) - Engine ground 3 (B61) No. 40 (-):
Intake oil control solenoid LH (E51) No. 6 (+) - Engine ground 3 (B61) No. 40 (-):
Exhaust oil control solenoid RH (E51) No. 5 (+) - Engine ground 3 (B61) No. 40 (-):
Exhaust oil control solenoid LH (E51) No. 4 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition While engine idling

8. Waveform 8

G13202306Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Crankshaft position sensor signal (E52) No. 14 (+) - Engine ground 3 (B61) No. 40 (-):
Ignition control #1 (E51) No. 24 (+) - Engine ground 3 (B61) No. 40 (-):
Ignition control #2 (E51) No. 37 (+) - Engine ground 3 (B61) No. 40 (-):
Ignition control #3 (E51) No. 50 (+) - Engine ground 3 (B61) No. 40 (-):
Ignition control #4 (E51) No. 63 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition While engine idling

9. Waveform 9

G13202307Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Fuel pump control (B61) No. 25 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition When engine is started

10. Waveform 10

G13627325Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Starter switch (B61) No. 4 (+) - Engine ground 3 (B61) No. 40 (-):
Starter switch 2 (B61) No. 19 (+) - Engine ground 3 (B61) No. 40 (-):
Starter cut relay control (B61) No. 8 (+) - Engine ground 3 (B61) No. 40 (-):
Accessory cut request (B61) No. 51 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition When engine is started

11. Waveform 11

G13627326Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Starter cut relay control (B61) No. 8 (+) - Engine ground 3 (B61) No. 40 (-):
Starter relay control (B61) No. 9 (+) - Engine ground 3 (B61) No. 40 (-):
Engine speed output (B61) No. 24 (+) - Engine ground 3 (B61) No. 40 (-):
Ignition switch (B61) No. 46 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition When engine is started

12. Waveform 12

G12399904Courtesy of SUBARU OF AMERICA, INC.
Measured terminal Air flow sensor signal (B61) No. 63 (+) - Engine ground 3 (B61) No. 40 (-):
Measuring condition While engine idling

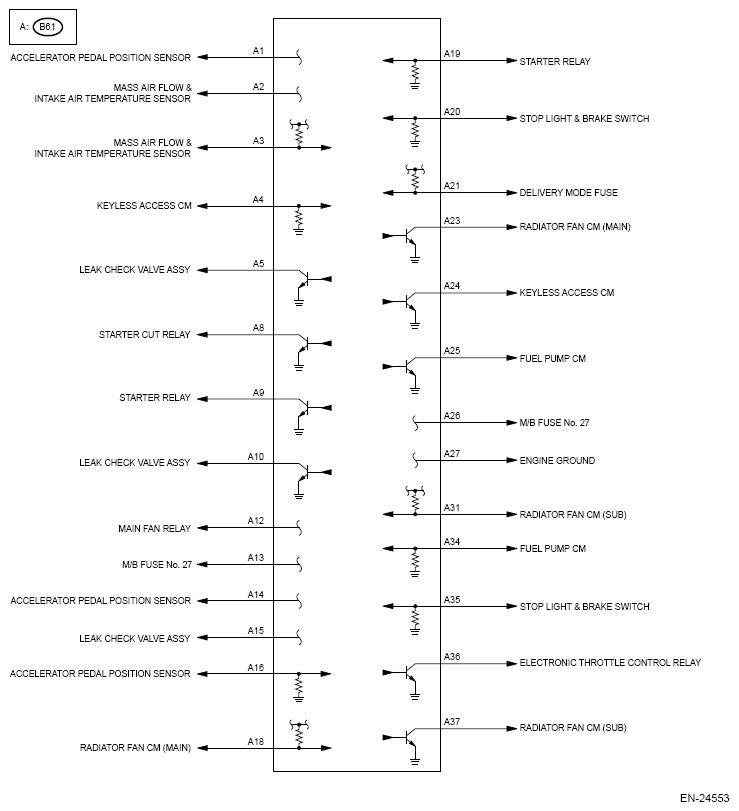

G13955052Courtesy of SUBARU OF AMERICA, INC.

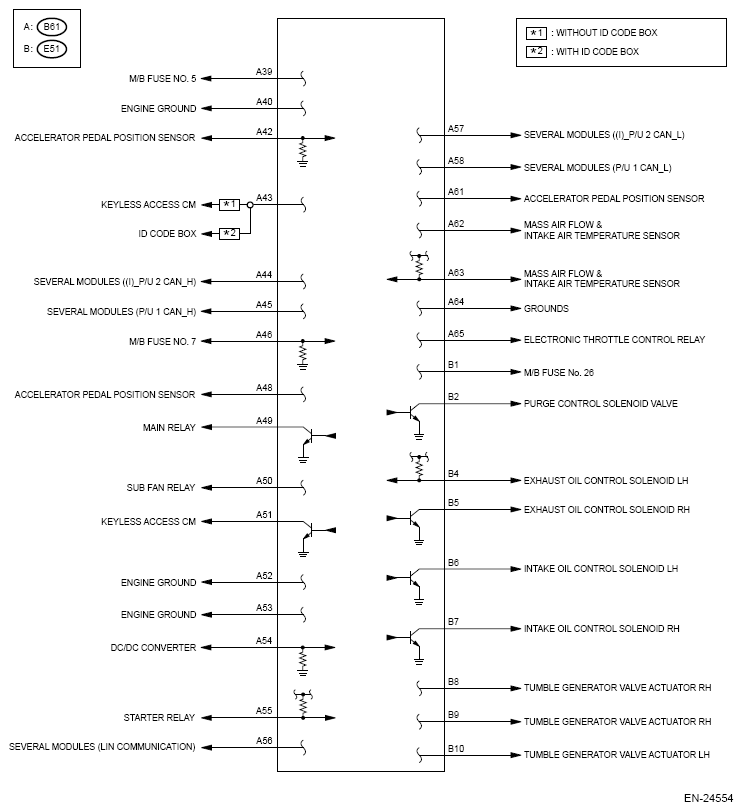

G13955053Courtesy of SUBARU OF AMERICA, INC.
G13627330Courtesy of SUBARU OF AMERICA, INC.
G13627331Courtesy of SUBARU OF AMERICA, INC.
Factory Service Tools

Use the Manual With the Right Hardware

Pair factory procedures with proven DIY tools so the instructions are easier to execute.

Disclosure: Verified tool recommendations may earn an affiliate commission at no cost to you.

Shop Manual-Ready ToolsCompare Repair QuoteQuote Shield Pro

When to See a Mechanic

Stop DIY work and contact a certified mechanic immediately if any of the following apply:

  • • You smell fuel, burning insulation, or see smoke.
  • • Brakes feel soft, pull hard to one side, or make grinding noises.
  • • The engine overheats, stalls repeatedly, or misfires under load.
  • • You are missing required tools, torque specs, or safe lifting equipment.
  • • You are not confident in the next step or safety outcome.

Rather have a pro handle this?

A certified mobile mechanic comes to your home or office. They bring the tools, you stay comfortable. No tow truck, no waiting room, no surprises.

Comes to youSame-day available12-month warranty
Get a Free Quote

No obligation. See pricing before you book.
