High-Pressure Fuel Pump Case

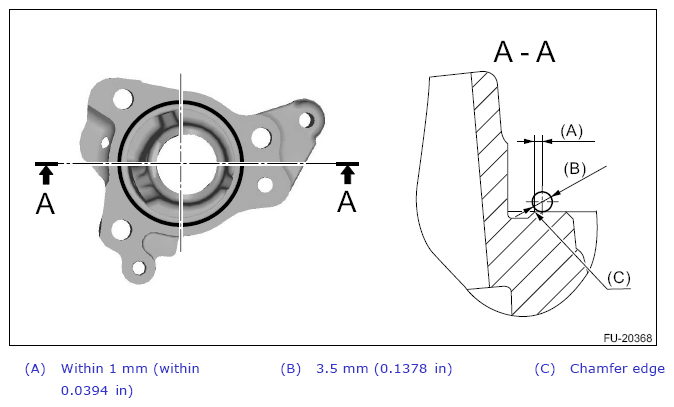

- Apply liquid gasket to the mating surfaces of fuel pump case, and install the high-pressure fuel pump case.NOTE:
- Before applying liquid gasket, degrease the old liquid gasket seal surface of the high-pressure fuel pump case and the cam carrier assembly LH.
- Install within 5 min. after applying liquid gasket.
Preparation items:
Liquid gasket: THREE BOND 1217G (part No. K0877Y0100), THREE BOND 1217H or equivalent
Liquid gasket applying diameter:
3.5±1 mm (0.1378±0.0394 in)

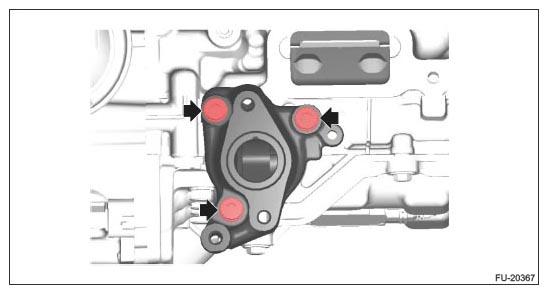

- Install the high-pressure fuel pump case.
Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Install the high-pressure fuel pump. Ref. to HIGH-PRESSURE FUEL PUMP .
