Fuel Level Sensor: Installation
- Install the fuel level sensor to the fuel pump assembly.CAUTION:

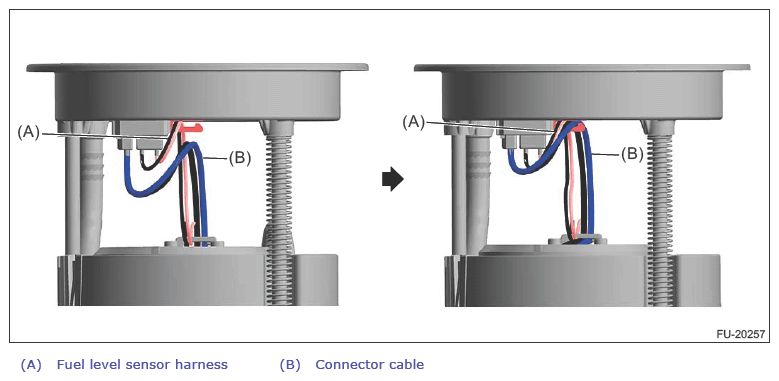

Be sure to install the fuel level sensor harness to the clip first, then install the connector cable. Otherwise, malfunction may occur.
- Install the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PUMP ASSEMBLY>INSTALLATION .
