07 Starter Circuit Failure
Detecting condition:
When judging that the engine does not start running when the engine is restarted.
Trouble symptom:
After the engine stops, a buzzer sounds and the Auto Start Stop is canceled.
Wiring diagram:
- ENGINE TYPE FB
Auto Start Stop Ref. to WIRING SYSTEM>AUTO START STOP>WIRING DIAGRAM>ENGINE TYPE FB .
- ENGINE TYPE FA
Auto Start Stop Ref. to WIRING SYSTEM>AUTO START STOP>WIRING DIAGRAM>ENGINE TYPE FA .
- CHECK ENGINE START FAILURE
.
Start the engine using the ignition key or push button ignition switch.
Does the engine start?
Yes: Go to 2 .
No: Inspect according to the general diagnosis table. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTICS WITH PHENOMENON . Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>DIAGNOSTICS WITH PHENOMENON .
- CHECK Auto Start Stop STATUS
.
- Using the Subaru Select Monitor, perform [Engine stop control] in the active test to stop the engine. Ref. to AUTO START STOP (DIAGNOSTICS)>ACTIVE TEST .
- Operate the Auto Start Stop cancel switch to restart the engine.
Does the starter motor operate?
Yes: Go to 4 .
No: Go to 3 .
- CHECK Auto Start Stop STATUS
.
- Using the Subaru Select Monitor, perform [Engine stop control] in the active test to stop the engine. Ref. to AUTO START STOP (DIAGNOSTICS)>ACTIVE TEST .
- Read the data of [ECM Restart Request Signal State] using Subaru Select Monitor. Ref. to AUTO START STOP (DIAGNOSTICS)>DATA MONITOR .
- Operate the Auto Start Stop cancel switch to restart the engine.
Did the display of [ECM Restart Request Signal State] change to [ON] at restarting?
Yes: Go to 4 .
No: Check the harness between TCM connector and ECM connector.

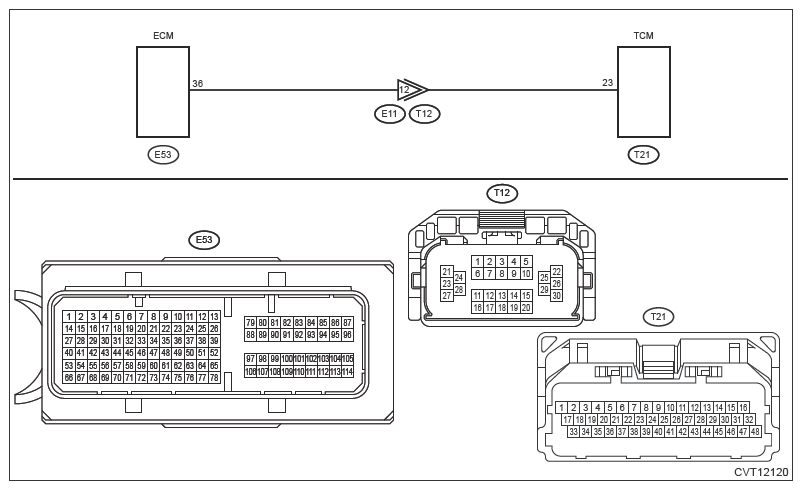

ENGINE TYPE FB
(T21) No. 23 - (E53) No. 36

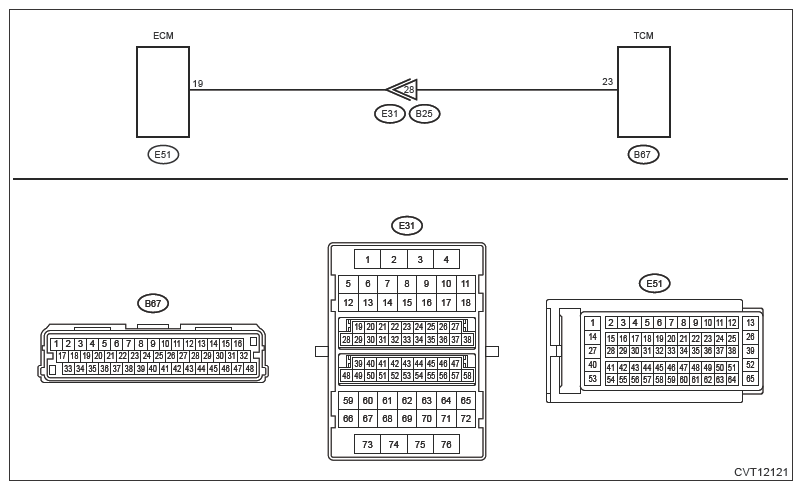

ENGINE TYPE FA
(B67) No. 23 - (E51) No. 19
- CHECK DTC
.
Read the DTC of [Engine] using the Subaru Select Monitor. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTIC TROUBLE CODE (DTC) . Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>DIAGNOSTIC TROUBLE CODE (DTC) .
Are any DTCs displayed?
Yes: Perform the diagnosis according to the DTC. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST . Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST .
No: Inspect according to the general diagnosis table. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>DIAGNOSTICS WITH PHENOMENON . Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>DIAGNOSTICS WITH PHENOMENON .
