RH Side
- Connect the coupling harness and install the knock sensor.NOTE:

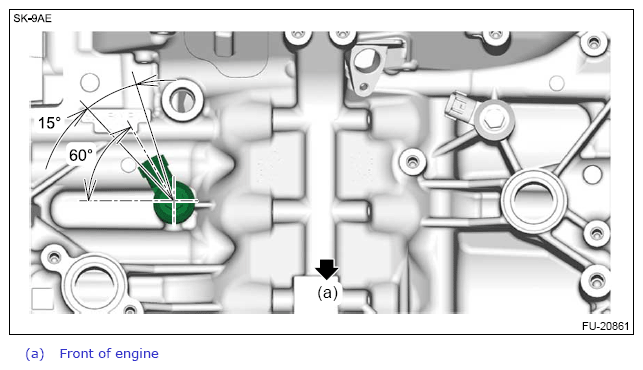

- Knock sensor must be positioned so that the connector center comes within the range shown in the figure.
- Make sure that the knock sensor and its connector do not touch the adjacent parts.
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)

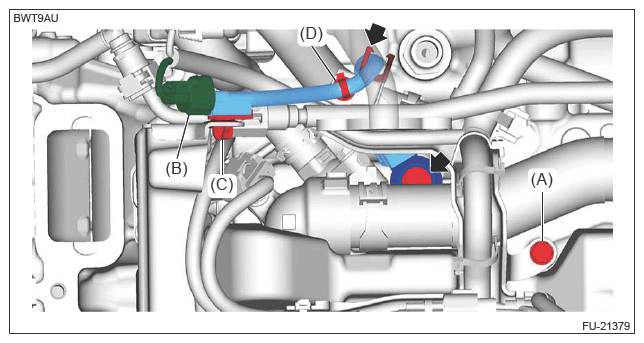

- Install the clip (D) and the coupling harness to the harness case.
- Install the clip (C), and connect the connector (B).
- Install the engine wiring harness with the bolt (A).
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
- Install the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>INTAKE MANIFOLD ASSEMBLY>INSTALLATION .
- Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
