LH Side

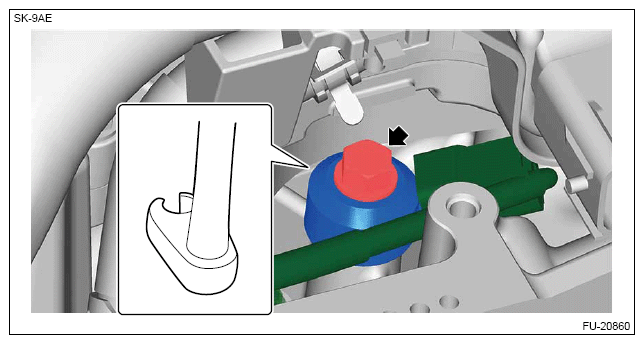

- Connect the coupling harness and install the knock sensor using a claw-foot wrench.NOTE:

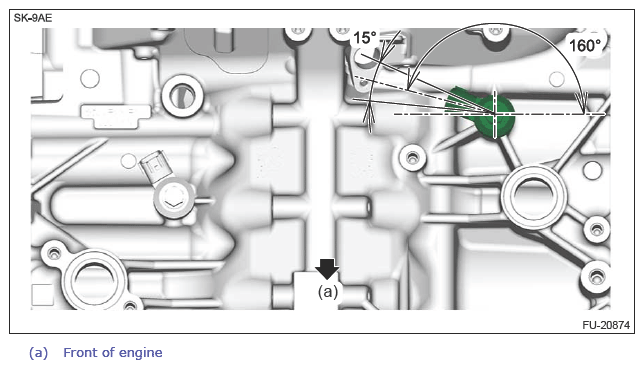

- Knock sensor must be positioned so that the connector center comes within the range shown in the figure.
- Make sure that the knock sensor and its connector do not touch the adjacent parts.
Tightening torque:
Calculation formula
T= 25 N.m (2.5 kgf-m, 18.4 ft-lb) x L1/(L1+L2)
T: Reading of the torque wrench
L1: Effective length of the torque wrench
L2: Effective length of the crowfoot wrench
- Install the clip (D) and clip (E), and connect the connector (C).
- Install the engine wiring harness stay.NOTE:
Use the following formula to calculate the reading of a torque wrench when tightening with a crowfoot wrench.
Calculation formula
T = 19 N.m (1.9 kgf-m, 14.0 ft-lb) L1 / (L1 + L2)
T: Reading of the torque wrench
L1: Effective length of the torque wrench
L2: Effective length of the crowfoot wrench
