Steering Angle Sensor: Installation
- Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
- Install the sensor assembly VDC steering.

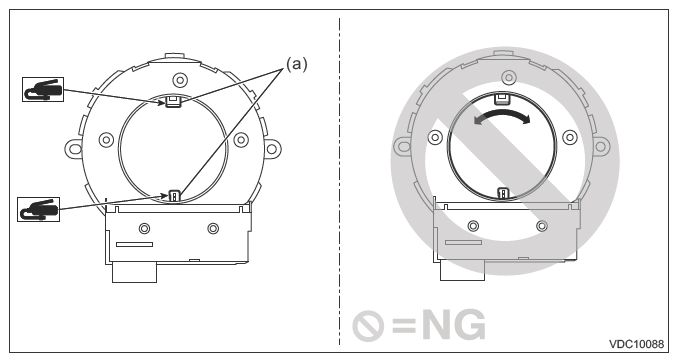

- Apply grease to the protrusion (a) of the new sensor assembly VDC steering.CAUTION:
Do not rotate the steering angle sensor protrusion.
Preparation items:
Grease: KYODO YUSHI Multemp L or equivalent
- Align the center of steering roll connector. Ref. to AIRBAG SYSTEM>ROLL CONNECTOR>ADJUSTMENT .
- Align the position of the protrusion and install the sensor assembly VDC steering to the steering roll connector.
- Apply grease to the protrusion (a) of the new sensor assembly VDC steering.
- Install the column cover assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>INSTALLATION .
- Install the steering wheel. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING WHEEL>INSTALLATION .
- Install the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Perform the neutral position setting of the sensor assembly VDC steering. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM and H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .
